1. Introduction

Energy and the environment have long been major challenges that human society must address. The development and application of thermal, electrical, optical, and magnetic functional materials, such as adiabatic insulation^[1], enhanced heat transfer^[2], efficient thermoelectric conversion and storage^[3-5], optoelectronic conversion and storage^[6-8], and magnetocaloric utilization^[9,10], are fundamental and crucial to improving energy efficiency and reducing environmental pollution. Research has shown that methods such as low-dimensional structuring^[11-13] and external field control^[14-17] are currently the most direct and effective ways to enhance the performance of functional materials. External field control includes techniques like magnetic fields, electric fields, electrostatic doping, and ionic intercalation, with magnetic fields being widely used due to their simplicity and effectiveness. When a current-carrying conductor is subjected to a perpendicular magnetic field, the free electrons within the conductor experience a Lorentz force that generates a transverse voltage, known as the Hall effect. Initially, researchers believed this phenomenon was due to the deflection of electrons under the Lorentz force. However, with the discovery and explanation of the quantum Hall effect^[18,19], nonzero Berry curvature has been identified as the fundamental cause of the transverse velocity. According to topological band theory^[20-22], carriers can acquire a transverse velocity from nonzero Berry curvature, regardless of carrier type. Therefore, in addition to electrons, neutral carriers such as photons, phonons, magnons, and excitons may also exhibit the Hall effect, as long as they possess nonzero Berry curvature^[23-34]. When carriers transport heat, the thermal Hall effect (THE) may occur under the influence of a magnetic field. This effect manifests as a transverse temperature gradient across the sample when a longitudinal heat current is applied in the presence of a magnetic field. It is the thermal counterpart of the Hall effect and was first reported by physicists Righi and Leduc in 1887^[35].

The conventional Hall effect applies exclusively to charged systems, in which carriers are deflected by the Lorentz force. However, for THE, in addition to electrons, which can carry heat, other heat carriers such as photons (which mediate electromagnetic interactions), phonons (which are lattice vibration excitations), magnons (which are collective spin oscillations), and excitons (which result from the coupling of electrons and holes) also contribute to thermal transport. Numerous mechanisms can generate nonzero Berry curvature in these carriers, thereby giving rise to THE. For example, spin-lattice interactions^[36-38], Dzyaloshinskii-Moriya (DM) interaction^{[27-29,31,32,39]}, among others. In addition to Berry curvature, other factors can also lead to significant thermal Hall signals, such as phonon scattering in SrTiO₃^[40], phonon chirality in cuprates^[41], and scalar (spin) chirality in kagome ferromagnets^[42], among others. The transition from electrical to thermal greatly expands the range of applicable materials, and the numerous mechanisms greatly increase the probability that THE will occur. This means that THE can be observed not only in metals and semiconductors, but also in various types of insulating and other materials. Therefore, for studies of energy-transport mechanisms involving multiple particles, THE provides a more general framework. It is regarded as a powerful probe of carrier transport within materials and is of great significance for the development of high-performance functional devices and for elucidating the coupled transport among magnetic, optical, thermal, and electronic carriers^[43,44]. In addition, it advances the refinement of condensed-matter theory. As a powerful tool for exploring phonon chirality^[41,45,46], spin properties^{[27,29-32,39,42,47,48]}, and multiphysics coupling among magnetism, optics, heat, and electricity^[49,50] THE will drive the development of high-performance thermoelectric^[51], optoelectronic^[52], ferroelectric^[53], and ferromagnetic materials^[54], and will spur innovation and enable applications in efficient energy management^[55,56], next-generation spintronic chips^[57,58], and magnetic storage devices^[59].

THE offers many advantages for probing neutral excitations in materials, but owing to the weak experimental signal and the complexity of the microscopic mechanisms, it remains challenging for both experiments and theory. Because the experimental signal is weak, measurements must enhance the thermal Hall signal while suppressing background contributions, and many external factors, such as sample variability, environmental noise, and contact geometry, can significantly affect the experimental results^[60]. The large gap between theoretical studies and experimental observations calls for refining theoretical models and designing targeted experiments. In addition, due to scale effects and structural influences, micro/nanoscale materials exhibit more pronounced quantum effects and markedly different carrier transport characteristics^[61,62], which merit in-depth exploration. However, existing experimental measurements are concentrated on macroscopic materials, and the significant property differences between macroscopic and micro/nano materials impose substantial challenges for experimental design. Nevertheless, researchers have obtained encouraging experimental results and proposed a variety of theoretical models. This paper aims to classify the carriers responsible for THE and to summarize recent theoretical and experimental advances on THE, as shown in Figure 1. Building on the transport mechanisms and experimental methods of different carriers, we identify candidate materials for studying coupled transport involving multiple carriers. In view of the urgent needs of multicarrier coupled-transport mechanisms and experimental studies, we propose an in situ, multiparameter magneto-thermal-electrical integrated characterization method suitable for micro/nano materials. This method can obtain, on the same specimen in a single run, multiple magnetic, thermal, and electrical parameters, including κ_xy, σ, S, and R_H, thereby laying an experimental foundation for the precise characterization of THE in micro/nanoscale materials, the development of high-performance materials and devices, and the study of multicarrier coupled-transport mechanisms.

Display Full Size

Figure 1. Thermal Hall effect induced by various heat carriers.

2. Research Status of Thermal Hall Effect

Current research on THE remains in a nascent stage. Both experimental measurements and theoretical studies have thus far focused only on specific individual materials, lacking a consolidated theoretical framework and reliable multi-dimensional, cross-scale characterization techniques. This article classifies the research based on the carriers responsible for THE within materials, electrons, photons, phonons, magnons, excitons, and other carriers, to organize and discuss recent advances in experimental measurements and theoretical studies of THE. Research concerning materials where the dominant carriers are contentious is also supplemented and discussed at the end of this section.

2.1 Electron

Electrons, as the most common carriers, can carry charge to produce the electrical Hall effect and can also carry heat to affect THE. The electrical Hall effect denotes the phenomenon whereby, under a magnetic field, charged carriers are deflected by the Lorentz force, thereby generating a transverse potential difference, and it is widely applied in particle concentration measurement^[63,64], automatic control^[65,66], and information technology^[67-69].

Less than a decade after the first discovery of the electrical Hall effect, Leduc and co-workers reported a similar phenomenon in the thermal transport of metals^[48], namely, THE. This represents the contribution of electrons to the transverse thermal conductivity (κ_xy) and is another consequence of the Lorentz force acting on free electrons. In 1975, Newrock et al.^[70] measured the thermal magnetoresistance of potassium samples in a 1.8 T magnetic field at temperatures between 2 and 9 K. The experimentally observed thermal magnetoresistance could not be explained by semiclassical theory or by combining electrical magnetoresistance together with the Wiedemann–Franz law. They found that the lattice thermal conductivity accounts for a portion of the quadratic-in-field thermal resistivity; after subtracting the lattice contribution, the Lorenz number still depends on the field strength and decreases as the field increases. This indicates the presence of other “intrinsic” electronic mechanisms beyond the lattice contribution that require further clarification. Building on this, Tausch et al.^[71] measured the Righi–Leduc coefficient of potassium samples in the same low-temperature range under a higher magnetic field (9T). The experimental results show that even after correcting the Righi-Leduc coefficient for the lattice contribution, the data still deviate substantially from the Wiedemann–Franz law. These results collectively indicate that, in addition to the lattice contribution, other mechanisms influence the experimental observations.

With the deepening of research, the composition of anomalous transverse responses in ferromagnetic metals has gradually become clear. In Fe, Co, and Ni, the total κ_xy can experimentally be decomposed into an intrinsic term (anomalous velocity caused by Berry curvature) and extrinsic terms (skew scattering and side jump). Onose et al.^[72] first verified this view in Ni-based metals by comparing the temperature dependence of the Lorenz number and thereby confirming the “dissipationless” nature of the intrinsic anomalous Hall current. Furthermore, Shiomi et al.^[73] simultaneously measured the thermal Hall conductivity and electrical Hall conductivity in pure and doped iron, and confirmed, in the low-temperature clean-limit regime^[74], the anomalous Hall effect (AHE) dominated by skew scattering. As the temperature decreases, the anomalous component of the thermal Hall conductivity exhibits different trends in the Si-doped and Co-doped samples, depending on the impurity type and concentration, as shown in Figure 2a. Together with the low-temperature behavior of the Lorenz number L [L = κ/(σT)], the “dissipationless intrinsic term” and the “dissipative extrinsic term (skew scattering)” in AHE can be distinguished. Going further, Baek et al.^[75] performed first-principles calculations for Fe/Co/Ni, providing the previously missing quantitative theoretical data. Comparison with experimental results shows that the sum of the “intrinsic term + side jump” reproduces the experimental data well in Fe and Co. The uniqueness of Ni confirms the significant influence of electron–phonon scattering on the anomalous thermal Hall effect (ATHE) and constitutes a key example of extrinsic contributions affecting ATHE. Furthermore, THE has also been observed in the kagome superconductor CsV₃Sb₅, in which electrons exhibit a pronounced thermal Hall response even in zero magnetic field and below the superconducting transition temperature^[76].

Display Full Size

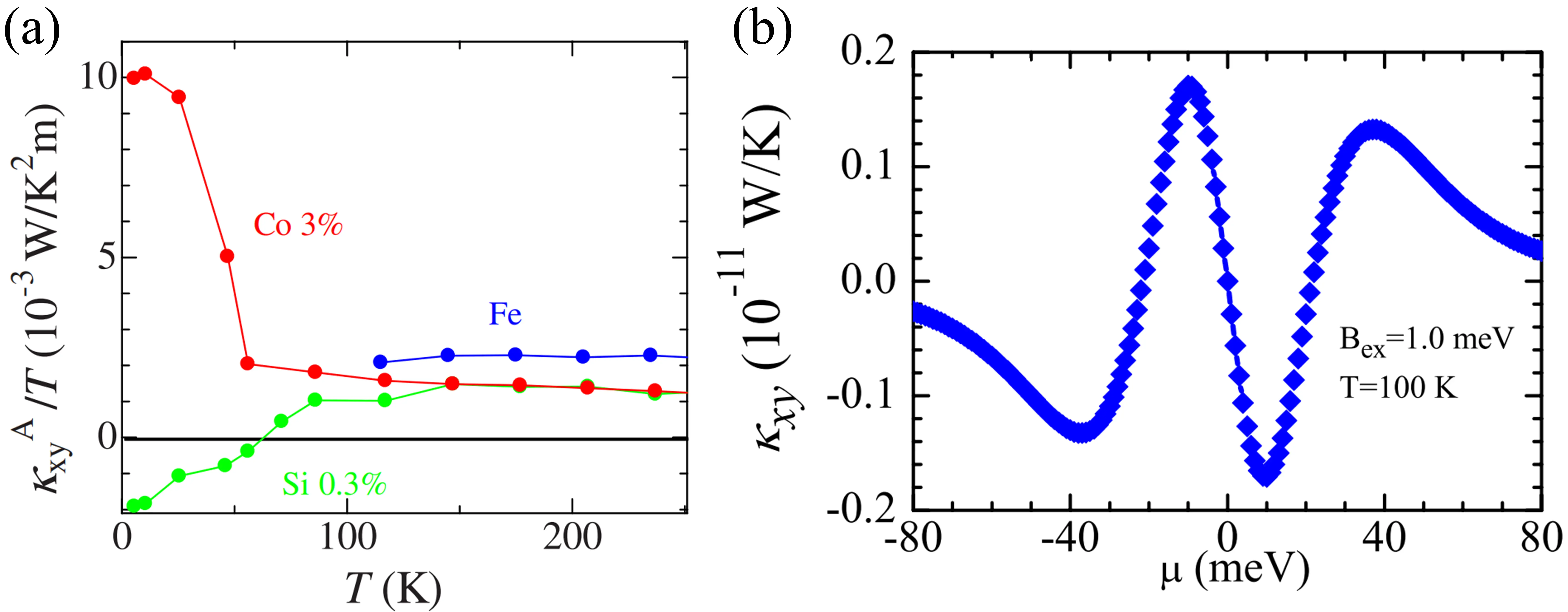

Figure 2. (a) Pure and doped iron: The anomalous part of the thermal Hall conductivity (κ^A_xy/T). Republished with permission from^[73]; (b) Thermal Hall conductivity κ_xy of silicene as a function of chemical potential μ under the effective field B_ex = 1 meV. T = 100 K and ∆z = 0. Republished with permission from^[77].

In the realm of engineered two-dimensional materials, linear-response theory indicates that, owing to time-reversal (TR) symmetry, the transverse thermal conductivity vanishes. However, when an exchange field is present, TR symmetry is broken, and a finite electronic thermal Hall conductivity can be introduced in materials such as silicene (Figure 2b)^[77]. In contrast, Zeng et al.^[23] predicted that even in the presence of TR symmetry, electrons can generate a nonlinear ATHE. The anomalous thermal transport carried by electrons is induced by the intrinsic Berry phase within the semiclassical wave-packet formalism^[35,78,79]. Owing to the symmetry of the Berry curvature Ω_k in linear response^[80,81], THE is compelled to vanish in TR-invariant systems. Yet in monolayer MoS₂ in the 1H phase and in the polar semiconductors BiTeX (X = I, Br), the thermal Hall response is independent of the Berry curvature. On this basis, they proposed a nonlinear ATHE that remains nonzero even in TR-invariant systems. They derived analytical expressions for the nonlinear anomalous transport coefficients, filling the previous theoretical gap in nonlinear thermal Hall transport^[82,83]. Finally, they computed the nonlinear anomalous thermal Hall coefficient of monolayer MoS₂, which was validated in monolayer transition-metal dichalcogenides. The internal mechanisms and material platforms of the electronic THE have thereby been further elucidated.

As the most common energy-carrying particles, electrons can contribute to both the electrical Hall effect and THE. The electronic THE was first observed in metals and contributes to their transverse thermal response. During transport, electrons are typically deflected by the Lorentz force to acquire a transverse velocity; they can also exhibit anomalous transverse responses arising from intrinsic and extrinsic mechanisms. Researchers have shown that the electronic thermal Hall conductivity can be decomposed into intrinsic (Berry curvature driven) and extrinsic (skew scattering and side jump) contributions, and this has been confirmed in Fe, Co, and Ni. More specifically, in silicene under an exchange field, an electronic THE can arise, and TR symmetry is broken in this case. In contrast, researchers have also found an electronic THE in nonlinear systems that preserve TR symmetry. Considering only electronic contributions, the nonlinear anomalous thermal Hall coefficient in monolayer MoS₂ was calculated, and an analytical expression was derived. Despite the numerous efforts made by scholars, some issues remain difficult to resolve. In practical measurements, materials such as metals, silicene, and MoS₂ host both electrons and phonons, and moreover, stable excitons may exist in MoS₂. How to effectively distinguish and measure the electronic contribution to the thermal Hall conductivity κ_xy, as well as the coupling mechanisms between electrons and other carriers, has become a key outstanding challenge. The Wiedemann–Franz law can be used to estimate the electronic part of κ_xy, but it fails in systems such as strongly correlated and topological materials. For instance, although TbCr₆Ge₆ retains metallic electrical behavior at low temperatures, the abrupt drop in its longitudinal Lorenz ratio reveals a decoupling of thermal and electrical transport, indicating that the system strongly deviates from the Wiedemann-Franz law^[84]. Exploiting distinct temperature and magnetic-field dependences of different carriers may also achieve the goal of isolating the electronic contribution; however, in practice, numerous challenges in interactions, measurement techniques, and data processing make it difficult to reach ideal outcomes.

2.2 Photon

When electrons pass through a magnetic field, they experience the Lorentz force, thereby inducing THE. However, one might ask whether a similar phenomenon will manifest when the heat carriers within a material are neutral, such as photons, phonons, and magnons. Indeed, this is the case. Unlike electrons, neutral carriers are immune to the Lorentz force, and their transverse thermal transport is governed by entirely distinct microscopic mechanisms. In 1996, Rikken et al.^[85] theoretically predicted that photons would be affected by a magnetic field when passing through a disordered scattering medium, and experimentally demonstrated the existence of the photonic Hall effect. The photonic Hall effect indicates that in the direction perpendicular to both the magnetic field and the incident light, the intensity difference of the light is proportional to the magnetic field strength, as described by the following equation:

(1)$\frac{\Delta I_{\perp }}{I_{\perp }}\approx B{V}_{\mathrm{eff}}{l}^{\ast }$

Here, ∆I_⊥ represents the normalized intensity difference of the light, V_eff is the effective Verdet constant, and l^* is the mean free path of photon scattering. Experimental measurements were made using CeF₃ material with a volume fraction of 3.4% in glycerol, where the relationship between the normalized transverse magnetic photon flux and magnetic field amplitude was plotted (Figure 3a), confirming the existence of the photonic Hall effect. Duchs et al.^[86] experimentally investigated the photonic Hall effect in an inverse medium composed of a magneto-optically active matrix and magneto-optically inert Mie scatterers. Experimental data (Figure 3b) indicate that the photonic Hall effect in the inverse medium is proportional to VBl^*. Based on these findings, an empirical expression was proposed to unify the results obtained in both direct and inverse media (Mie scatterers). The photonic Hall effect is essentially the result of anisotropic light scattering induced by a magnetic field. In the presence of a magnetic field, incident light undergoes circular polarization^[87], which subsequently causes a rotation in the Rayleigh mode of the differential scattering cross-section^[88]. In multiple scattering processes, a transverse photon flux is generated. The above phenomena all pertain to optical transport; when thermal transport occurs within the material, what role do photons play in thermal transport?

Display Full Size

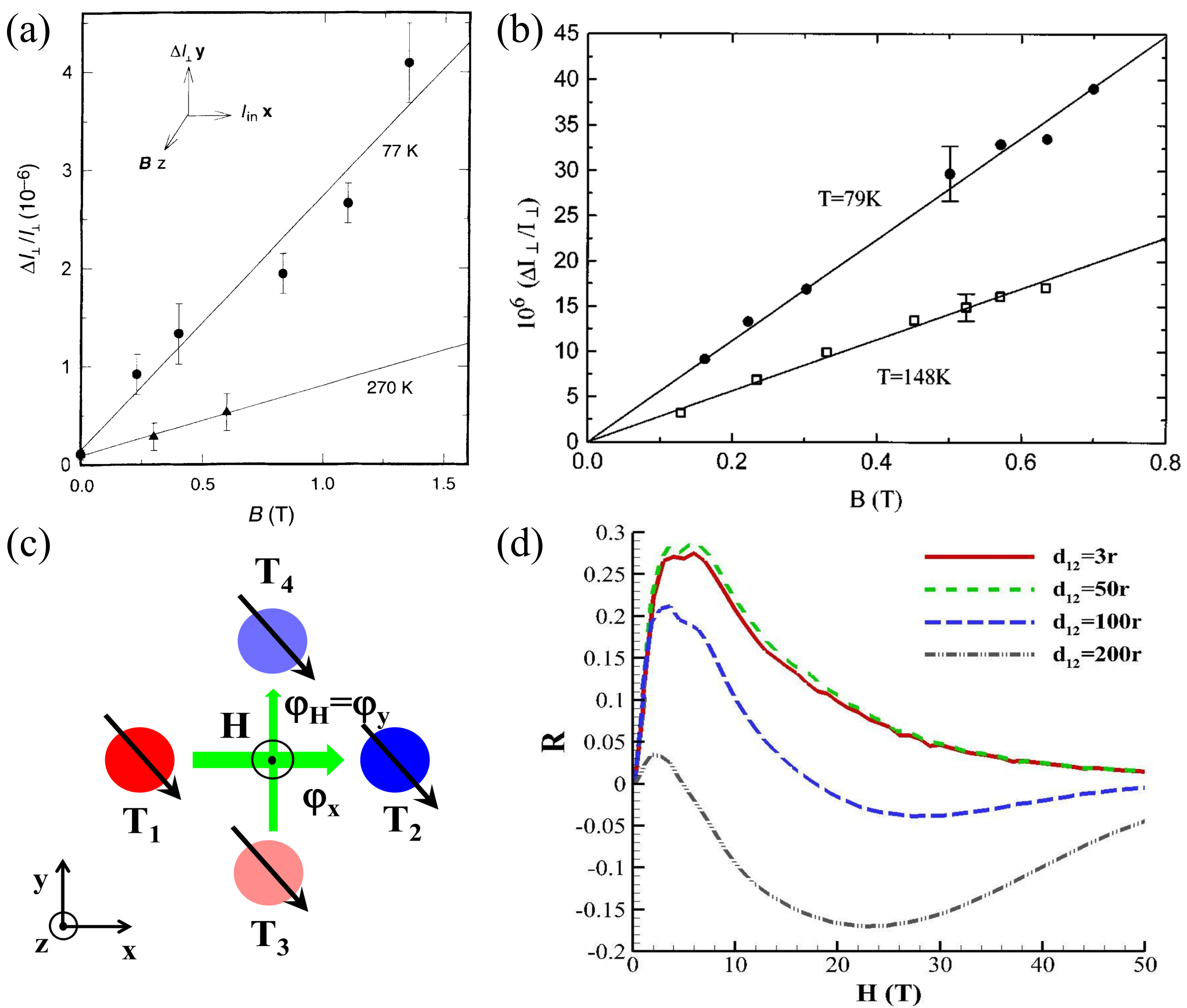

Figure 3. (a) Relationship between the normalized transverse magneto-optical current ∆I_⊥/I_⊥ and magnetic field amplitude B at different temperatures for CeF₃. Republished with permission from^[85]; (b) Relationship between the normalized transverse magneto-optical current ∆I_⊥/I_⊥ and magnetic field amplitude B for the sample under test at different temperatures. Republished with permission from^[86]; (c) Photon thermal Hall effect; (d) Relationship between the relative Hall temperature difference R and magnetic field H at T_eq = 300 K for different separation distances. Republished with permission from^[96].

Based on the theory of fluctuational electrodynamics, thermally radiated photons can generate a transverse heat flux, namely the photon THE, whose core mechanism lies in the breaking of TR symmetry. To fully comprehend this effect, it must be contextualized within the framework of many-body radiative heat transfer. Unlike classical two-body thermal radiation, heat exchange in a many-body system is governed by fluctuational electrodynamics, where the energy transfer between any two objects is modulated by the multiple scattering of photons and many-body interactions. This many-body effect profoundly alters the photonic local density of states and the nanoscale heat transport characteristics. Notably, in many-body systems composed of media such as magneto-optical materials or Weyl semi-metal, an applied magnetic field or the intrinsic topological band structure of the material induces antisymmetric off-diagonal elements in the dielectric tensor, thereby breaking TR symmetry. This symmetry breaking excites directional chiral electromagnetic modes within the system, leading to nonreciprocity in the photon transmission coefficients. Macroscopically, this mechanism not only manifests as a transverse heat flux induced by a longitudinal temperature gradient but also implies the existence of persistent heat currents under thermodynamic equilibrium. In recent years, researchers have extensively investigated this effect in specific systems. Guo et al.^[89] discussed the photon THE and sustained heat flow in radiative heat transfer. They found a direct relationship between sustained heat flow^[90] and the photon THE in a specific system with tetragonal rotational symmetry. The center of the sphere is located at the vertex of a square in the x-y plane, and a magnetic field is applied along the z-axis. The photon THE refers to the temperature gradient induced along the y-direction (T₂ - T₄) as a result of a temperature gradient applied along the x-direction (T₁ - T₃)^[91]. In the near-equilibrium state, the magnitude of the photon THE is proportional to the temperature derivative of the sustained heat flow (S_1→2 - S_2→1) in the system. Therefore, the photon THE, which occurs away from equilibrium, can be used to probe the sustained heat flow predicted in the equilibrium state. However, it is worth noting that the connection between persistent heat currents and the photon THE has been questioned. Biehs et al.^[92] demonstrated that although circulating heat currents exist in nonreciprocal systems in thermal equilibrium, these persistent heat currents cannot be detected via out-of-equilibrium heat transfer measurements. That is, the transverse temperature gradient observed in the photon THE may not directly reflect the persistent heat currents in thermal equilibrium. This assertion currently remains under debate and warrants further exploration. Ott et al.^[93] prepared the same geometric structure using Weyl semi-metal (WSM)^[94,95] and predicted the emergence of photon-induced ATHE in this structure. Unlike the photon THE in Mrzyglod et al.^[88], which requires the application of an external magnetic field, the ATHE in WSM is an intrinsic property of the system and is comparable to the effect observed with an external magnetic field of B = 0.1 - 1 T. Notably, in this system, the local temperature field can be adjusted without altering the direction of the temperature gradient. The ATHE in WSM can be used to control the direction of radiative heat flux in nanoscale systems, without the need to apply a strong magnetic field. This opens up a new pathway for thermal management and heat flux guidance in nanoscale systems. Ben-Abdallah^[96] systematically summarized the photon THE in the same magneto-optical particle network. When a magnetic field is applied along the z axis, a temperature gradient is generated in the y direction, as shown in Figure 3c. In this case, the symmetry of the system is broken. As shown in Figure 3d, for any separation distance d₁₂, i.e., the distance between T₁ and T₂, when the magnetic field is zero, all particles are isotropic, and the relative Hall temperature difference ([R = (T₂ - T₄)/(T₁ - T₃)]) is zero. For a nonzero magnetic field, the symmetry of the system is broken, and a transverse temperature difference appears. The results show that in the near-field state, R maintains the same sign regardless of the magnetic field, while in the far-field region, the sign of R changes. This difference arises from the spatial variation of the electric field radiated by each particle itself. Building upon the aforementioned studies, Ben-Abdallah introduced a novel phenomenon: the inverse spin thermal Hall effect (ISTHE)^[97]. While the conventional photon THE requires a longitudinal temperature gradient to generate a transverse heat flux, ISTHE is driven by a spatial gradient of the photon spin angular momentum (SAM). The author demonstrated this effect in a specific system of InSb nanoparticles subjected to a spatially varying magnetic field. The inhomogeneity of the magnetic field induces a variation in the photon SAM, which serves as the primary mechanism for generating the transverse temperature gradient. This finding not only completes the theoretical framework of thermal transport in nonreciprocal systems but also opens a new avenue for localized thermal management.

Photons and electrons share similar properties and can also contribute to THE. At the outset, researchers experimentally confirmed the existence of the photonic Hall effect and proposed an empirical expression that consistently describes experimental results in both normal and inverse media. Currently, researchers have focused on a specific system with fourfold rotational symmetry. By varying the material and measuring transverse heat flow with and without an applied magnetic field, the generation mechanism of THE in this system can be probed. The photon THE in such systems can probe persistent equilibrium heat currents, tune the magnitude of the local temperature field, and control the direction of nanoscale radiative heat flux, opening a pathway for thermal management in nanoscale systems^[98]. Furthermore, ISTHE opens another promising pathway for achieving novel thermal management strategies. However, the photon thermal Hall signal is extremely weak; how to effectively enhance its detectability remains a challenge. Introducing resonant cavities or waveguide structures into the material could potentially increase the photonic local density of states, thereby enhancing the photon thermal Hall response. Additionally, exploiting magneto-optical polarization rotation in specific materials might increase the lateral deflection of heat flow, consequently boosting the thermal Hall signal. Yet, these methods require further validation in new materials and experiments; how to effectively improve experimental techniques and design experimental protocols remains the primary outstanding challenge.

2.3 Phonon

Phonons, as neutral quasi-particles, are widely present in various crystalline materials. Strikingly, despite lacking electric charge and thus being unaffected by the Lorentz force, phonons have been found to exhibit a significant THE in the presence of a magnetic field. This phenomenon has been observed in various systems including Tb₃Ga₅O₁₂, SrTiO₃, cuprates, (Zn_xFe_1-x)₂Mo₃O₈, among others.

(1) Tb₃Ga₅O₁₂

In 2005, Strohm et al.^[99] first discovered that phonons exhibit a similar magnetically induced transverse thermal transport effect and experimentally demonstrated the existence of the phonon Hall effect (PHE) in Tb₃Ga₅O₁₂ (TGG). Here, the PHE refers specifically to the phonon thermal Hall effect. The experiment measured the magnetic transverse phonon thermal Hall conductivity using the paramagnetic TGG crystal, with the experimental setup shown in Figure 4a. The sample dimensions were 15.7 × 5.7 × 0.67 mm³, and Figure 4b presents the isothermal lines of the sample under finite and zero magnetic field. The magnetic field strength was set to B = 0 T, the sample’s average temperature was T = 5.45 K, and the total applied heating power was j = 0.14 mW, generating a longitudinal temperature gradient of about 1 mK/cm. When the external magnetic field was perpendicular (circle) or parallel (square) to the heat flow, a temperature difference was generated in the transverse direction, as shown in Figure 4c. The results indicated that when the applied magnetic field was parallel to the heat flow, there was almost no transverse temperature difference. However, when the magnetic field was perpendicular to the heat flow, the transverse temperature difference was proportional to the applied magnetic field strength, consistent with THE observed for other carriers. The coefficient of PHE is equal to S = (∇_yT/∇_xT)/H ≈ 1 × 10^-4 T^-1, where ∇_xT and ∇_yT are the longitudinal and transverse temperature gradients, respectively. However, the sample in Ben-Abdallah^[96] was an unoriented TGG sample, so the orientation of the vector ∇T and H with respect to the crystallographic direction was unknown, and the sign of PHE was not determined. Sheng et al.^[36] proposed that the sign of this effect is negative, while Inyushkin et al.^[100] provided experimental data that demonstrate a positive sign for PHE in TGG. The experimental setup is shown in Figure 4d, where 1 is the TGG crystal, 2 is the copper unit with the thermal controller, 3 is the heater used to generate the temperature gradient, and t₁, t₂, t₃, and t₄ are thermometers. The data obtained are shown in Figure 4e, where the coefficient S is three times lower than that reported by Ben-Abdallah^[96]. This discrepancy may be due to the strong anisotropy of the heat flux associated with PHE.

Display Full Size

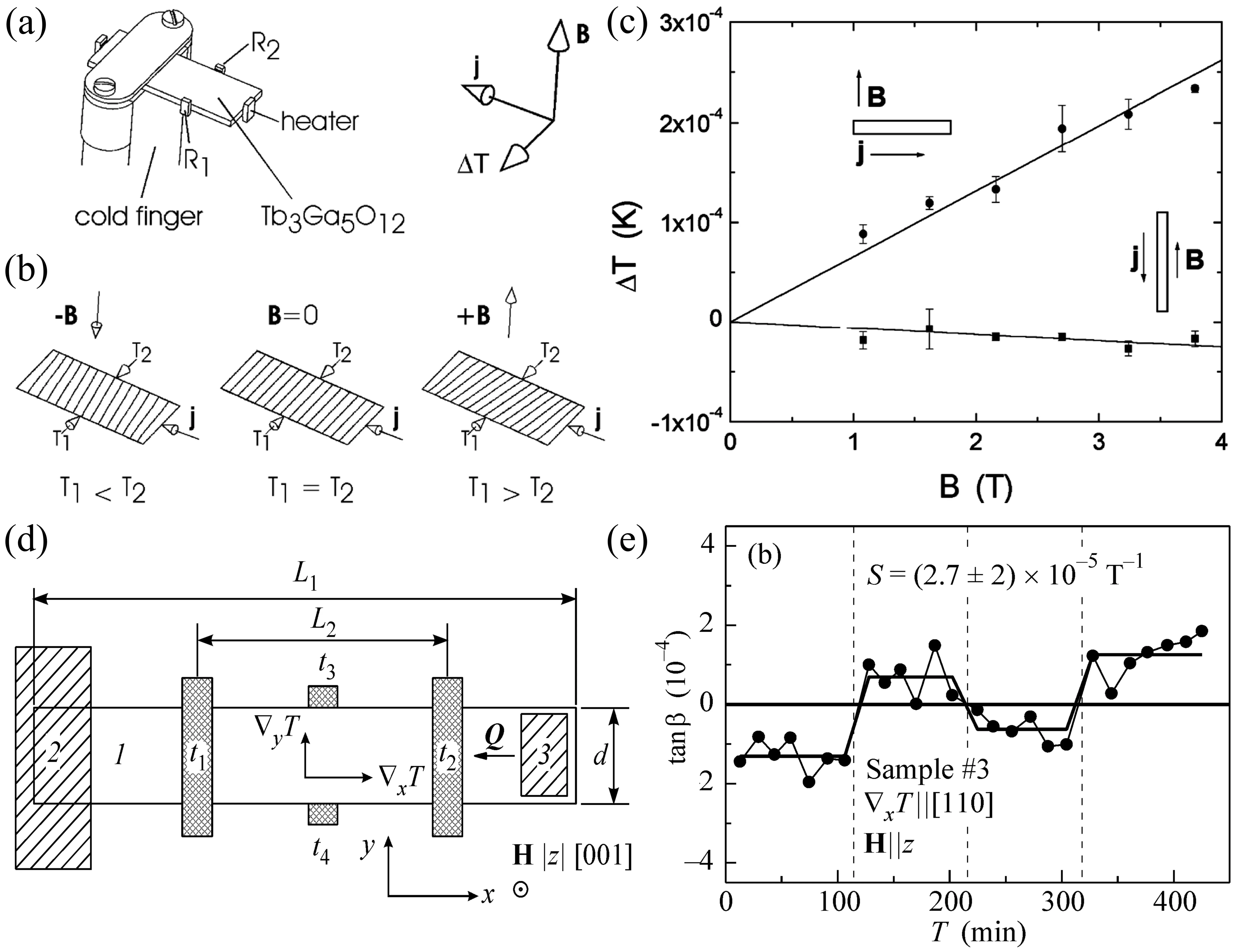

Figure 4. (a) Schematic diagram of the experimental setup; (b) Isothermal lines of the sample under magnetic field and zero magnetic field; (c) Transverse temperature difference of heat flow in Tb₃Ga₅O₁₂ when the magnetic field is perpendicular (circle) and parallel (square). Republished with permission from^[99]; (d) Layout of the experimental setup and the direction of the heat flux in the sample; (e) Tangent of the Hall angle as the applied magnetic field (H = ±3T) changes direction. The symbol S denotes the coefficient of the phonon Hall effect. The vertical dashed lines correspond to the time when the magnetic field sign changes. Republished with permission from^[100].

Shortly after the experimental demonstration of PHE, Sheng et al.^[36] conducted theoretical studies on TGG. They proposed that the rare-earth ions Tb³⁺ possess a large magnetic moment with paramagnetic properties, which could potentially be the cause of spin-lattice interaction. However, the magnetic ordering of TGG does not occur at temperatures as low as 0.2 K^[101], indicating that interatomic spin interaction might be very weak. Therefore, they neglected spin-spin interaction and focused on the Raman interaction as the dominant mechanism underlying PHE. They proposed a theoretical model for the Raman spin-lattice interaction to account for PHE. Using this model, they calculated the phonon thermal Hall conductivity, κ_xy, which matched the experimental data well, as shown in Figure 5a. In the figure, the horizontal axis (KM/ω_D) denotes the ratio of the Raman spin–lattice interaction energy scale (KM) to the Debye frequency (ω_D), and δ = c_L/c_T is the sound-velocity ratio of longitudinal to transverse modes. Furthermore, Michiyasu et al.^[102] suggested that PHE in TGG materials is caused by the phonon resonance scattering due to the superstoichiometric Tb³⁺ ion crystal field states. This scattering arises from the coupling between the quadrupole moment of Tb³⁺ ions and the lattice distortion, and the calculated values are consistent with the experimental data reported by Düchs et al.^[86] at T = 5 K (Figure 5b). In summary, PHE in TGG has two distinct interpretations, and the dominant mechanism remains unclear and requires further experimental validation.

Display Full Size

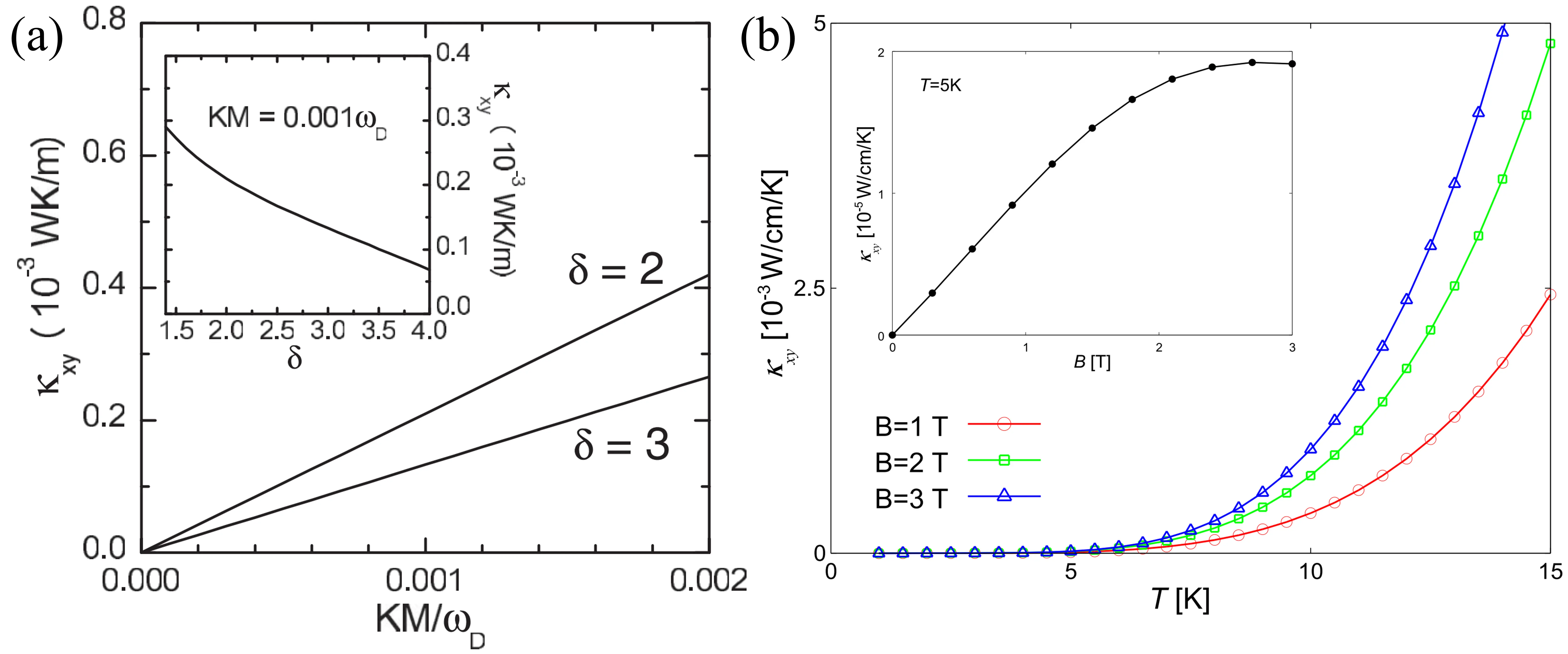

Figure 5. (a) The functional relationship between the thermal Hall conductivity κ_xy and KM/ω_ᴅ for different δ values. Republished with permission from^[36]; (b) Magnetic field dependence of the thermal Hall conductivity κ_xy [10^-5 W/cm/K]. The inset shows the magnetic field dependence of κ_xy [10^-5 W/cm/K] at T = 5 K. Republished with permission from^[102].

(2) SrTiO₃

The thermal Hall conductivity κ_xy in TGG materials is very weak, making it insufficient for practical applications. It wasn't until Li et al.^[40] discovered a giant thermal Hall conductivity, κ_xy, in the non-magnetic insulator SrTiO₃, thereby overcoming this limitation. The peak thermal Hall conductivity reached -80 mW·K^-1·m^-1 at a magnetic field strength of 12 T, about twice that reported for cuprates^[41]. The SrTiO₃ sample has dimensions of 5 × 5 × 0.5 mm³. As shown in Figure 6a,b, both the longitudinal thermal conductivity κ and the thermal Hall conductivity κ_xy reach their maxima at the same temperature, indicating that phonons are the dominant internal transport carriers. To clarify the source of the giant thermal Hall conductivity, thermal transport was measured in KTaO₃ materials. Compared to SrTiO₃, KTaO₃ does not undergo the antiferrodistortive transition^[103]. As seen in Figure 6b, the thermal Hall conductivity of KTaO₃ is much smaller than that of SrTiO₃, indicating that the domain walls generated after antiferrodistortive transitions are responsible for scattering phonons and causing transverse deflection. However, its thermal Hall conductivity is negative, significantly deviating from the Wiedemann-Franz law, which requires further investigation. To further explore the unexpectedly large thermal Hall conductivity in SrTiO₃, Chen et al.^[104] theoretically examined the conditions under which phonons are induced to generate transverse velocities. Initially, considering only the intrinsic contributions, the resulting values were several orders of magnitude smaller than the experimental data. When defects were assumed, such as domain walls created after the antiferrodistortive transition, the thermal Hall conductivity increased significantly, reaching the experimental magnitude. This indirectly supports the idea that the domain walls generated after antiferrodistortive transitions are the primary cause of phonon scattering and transverse deflection. A similar non-magnetic insulator to SrTiO₃ is black phosphorus (BP), where phonons are believed to be the only collective excitation in both materials. The transverse and longitudinal thermal conductivity of BP peak at the same temperature, and their values are approximately three orders of magnitude higher than those of any other insulator, as shown in Figure 6c,d^[105]. Despite the absolute magnitude of the thermal conductivity varying over three orders of magnitude, the thermal Hall coefficient is similar to that of other phonon materials, ranging between 10^-4 and 10^-3 T^-1. Furthermore, Li et al.^[106] observed an in-plane THE in black phosphorus, thereby proposing a novel phonon interaction mechanism. Additionally, Zhou et al.^[26] found that under non-resonant circularly polarized light, BP thin films can also exhibit THE. This anomalous effect exists even in the absence of an external magnetic field and is driven solely by the effective magnetic field induced by the Berry curvature. This discovery provides a feasible method to achieve a finite Berry curvature and suggests the possibility of a topological phase in BP thin films.

Display Full Size

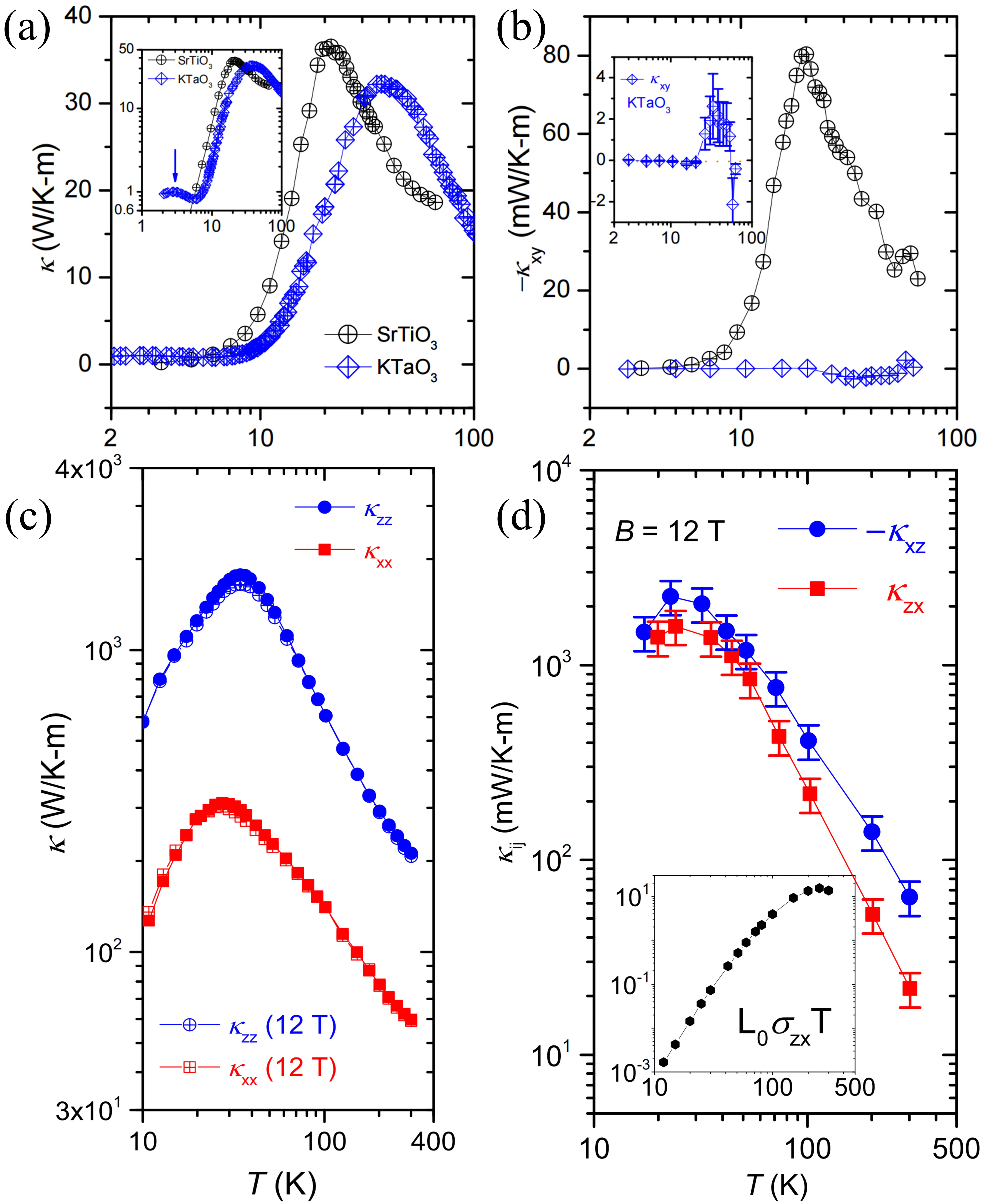

Figure 6. (a) Longitudinal thermal conductivity κ of SrTiO₃ and KTaO₃, with the inset showing a logarithmic plot; (b) thermal Hall conductivity κ_xy of SrTiO₃ and KTaO₃, with the inset showing an enlarged signal for KTaO₃. Republished with permission from^[40]; (c) Transverse thermal conductivity κ of BP in different directions; (d) Thermal Hall conductivity κ_zx and κ_xz of BP. Republished with permission from^[105]. The horizontal axes in the figures all represent the absolute temperature T (K).

(3) Cuprates

Cuprates are another class of materials where phonons induce a large thermal Hall conductivity. Grissonnanche et al.^[41] reported the giant κ_xy in four different cuprates, which has attracted widespread attention in the field. The four cuprates are La_1.6-xNd_0.4Sr_xCuO₄ (Nd-LSCO), La_1.8-xEu_0.2Sr_xCuO₄ (Eu-LSCO), La_2-xSr_xCuO₄ (LSC O), and Bi₂Sr₂La_xCuO_6+δ (Bi2201), with doping concentrations ranging from p ≈ 0 for the Mott insulator to p = 0.24 for the overdoped metal. For both Nd-LSCO and Eu-LSCO, the critical doping concentration is p* = 0.23. When the doping concentration is below the pseudogap critical point, they observed that the κ_xy of Nd-LSCO becomes negative at low temperatures; however, when the doping concentration exceeds the critical doping level (p = 0.24), the thermal Hall conductivity κ_xy becomes positive at low temperatures, as shown in Figure 7a. The data for Eu-LSCO at p = 0.24 and p = 0.21 are similar to those of Nd-LSCO, as shown in Figure 7b. This indicates that negative κ_xy is a characteristic of the pseudogap phase in cuprates. Additionally, the κ_xy data of another material, Bi2201, show behavior very similar to Nd-LSCO and Eu-LSCO when p < p*, as shown in Figure 7c. Therefore, the negative thermal Hall conductivity at low temperatures is a general feature of the pseudogap phase and is independent of the material type. The negative κ_xy signal in cuprates is unrelated to magnetic ordering, ruling out the possibility of magnon excitations. To further investigate the source of the giant thermal Hall signal in cuprates, Grissonnanche et al.^[45] experimentally verified that the cause of this thermal Hall response must be phonons, with the mechanism originating intrinsically. First, the charge carriers cannot come from p = 0 because such large κ_xy can also be observed in the undoped Mott insulator La₂CuO₄ (Figure 7d). Therefore, it must come from spin-related excitations^[107,108] or phonons^[104]. To distinguish between these two types of heat carriers, the authors employed a simple method: they applied heat fluxes along the c-axis and a-axis, respectively, and observed the values of κ_zy(T) and κ_xy(T), since only phonons are likely to move easily along the c-axis. The authors applied heat fluxes along both directions and measured materials with different doping levels. When the doping concentration is p = 0.24, which is outside the pseudogap phase (p > p*; Figure 7e,g), the thermal conductivity κ_zy(T) = 0, indicating that phonons do not exhibit chirality. When the doping concentration is p = 0.21, within the pseudogap phase (p < p*; Figure 7f), the thermal conductivity κ_zy(T) < 0, indicating that phonons possess chirality. κ_zy and κ_xy within the pseudogap phase are of the same order of magnitude, indicating that the source of the thermal Hall signal in cuprates is phonons. However, the mechanism by which phonons acquire chirality within the pseudogap phase is still unclear and requires further research. Currently, there are two proposed methods for phonons to acquire chirality: coupling with spin or scattering by impurities or defects, but there is no systematic evidence supporting either hypothesis. Ataei et al.^[46] introduced rhodium impurities into the antiferromagnetic insulator Sr₂IrO₄, attempting to provide evidence for phonon impurity scattering. Currently, researchers have demonstrated that rare-earth impurities and domain structures do not account for phonon scattering in cuprates. Based on this, two possible hypotheses were proposed: (1) Phonon coupling to electronic states breaks TR symmetry, which would occur in the pseudogap phase of cuprates^[109]; (2) Phonon coupling to short-range antiferromagnetic correlations, with experimental evidence including the observation of a change in the Fermi surface at p* under an applied magnetic field^[110], and a reduction in carrier density observed near p*^[111-113]. Notably, recent work by Chen et al.^[114] discovered a surprising "planar" THE in cuprates, where THE is observed even when the magnetic field is parallel to the heat flow. The authors observed a planar Hall response in cuprates NCCO (x = 0.04), which was comparable in magnitude to the conventional Hall response. When H = 15 T, even under the condition H ||J|| a (a is the direction of heat flow), κ_xx and κ_xy showed the same order of magnitude as the longitudinal thermal conductivity, as shown in Figure 7h,i. Both have the same temperature dependence and peak at the same temperature. This trend demonstrates that the quasi-particles generating the planar thermal Hall conductivity κ_xy in NCCO are phonons, and the planar thermal Hall signal arises from local symmetry breaking, possibly associated with impurities, defects, or domains. To further investigate, Kavokin et al.^[115] attempted to establish a simple model to reveal the common mechanism behind the experimental observations, mainly focusing on the shared features of κ_xy (negative values and superlinear temperature dependence). They approached the problem from thermodynamics, using fluctuation theory to derive the analytical expression for the thermal Hall conductivity κ_xy in general metals and superconductors, suggesting that THE is determined by the rate of change of the chemical potential μ with temperature (dμ/dT) and the rate of change of the system’s magnetization M with temperature (dM/dT). Thus, it has been demonstrated that the heat carriers in cuprates are phonons, and two hypotheses have been proposed to explain how these phonons acquire chirality. However, the nature of the pseudogap phase in cuprates remains elusive, with no consensus reached regarding its fundamental properties. Meanwhile, recent simulations and theoretical analyses have overturned the conventional linear spin-wave no-go theorem, demonstrating that magnon-magnon scattering alone can induce a substantial intrinsic thermal Hall effect in square-lattice Mott insulators^[116]. This finding suggests that when discussing thermal transport in insulating magnets such as cuprates, the contribution of magnons should not be excluded a priori, warranting further in-depth exploration. Moreover, the experimental thermal Hall signals observed by Hu et al.^[117] in cuprates are more than an order of magnitude smaller than previously reported values. This discrepancy in magnitude raises new questions and poses challenges in understanding THE in this system.

Display Full Size

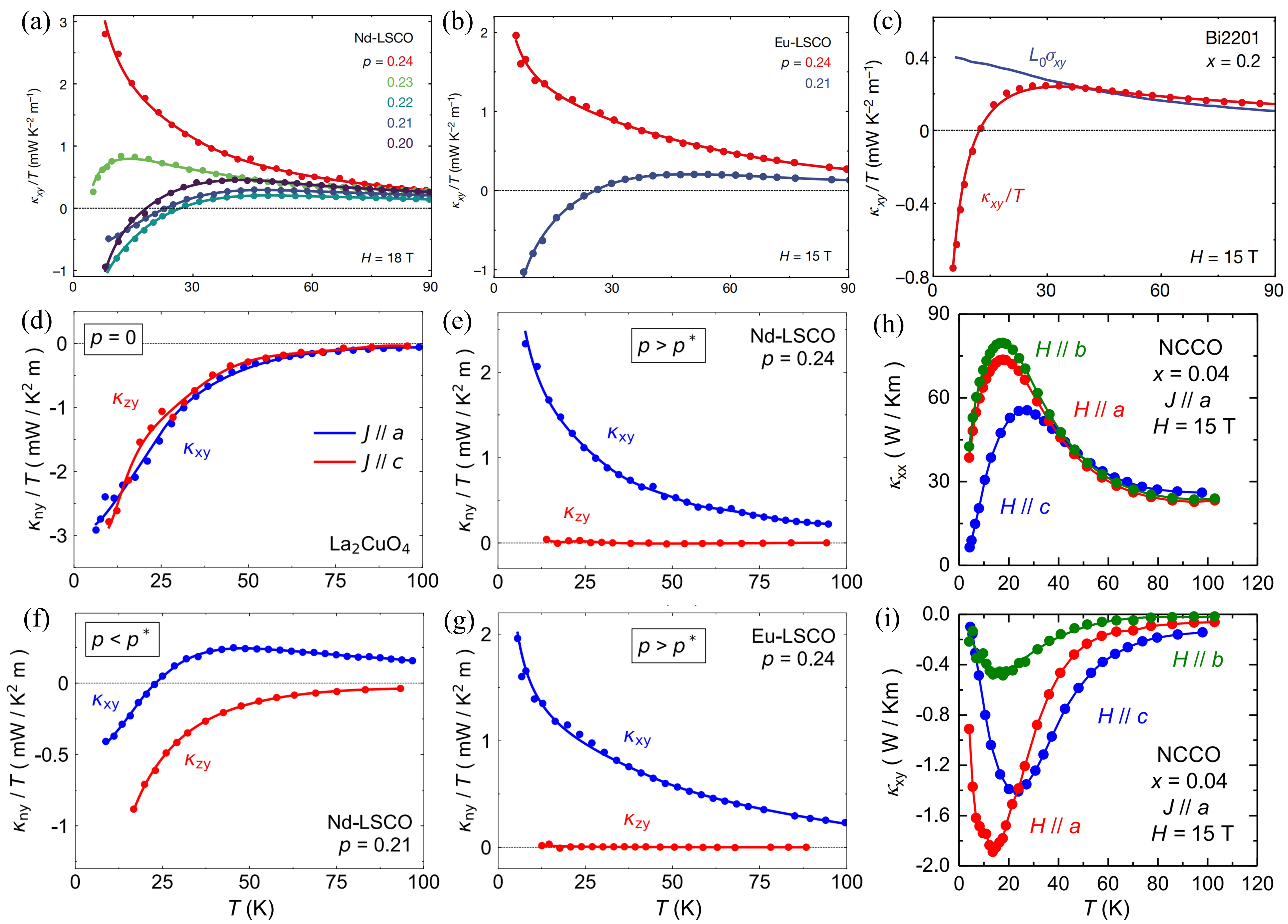

Figure 7. (a)Thermal Hall conductivity κ_xy/T of Nd-LSCO at H = 18 T; (b) Thermal Hall conductivity κ_xy/T of Eu-LSCO at H = 15 T; (c) Thermal Hall conductivity κ_xy/T of Bi2201 at H = 15 T. Republished with permission from^[41]; (d)-(g) Thermal Hall conductivity κ_ny/T of cuprates at three different doping levels: (d) La₂CuO₄ (p = 0); (e) Nd-LSCO (p = 0.24); (f) Nd-LSCO (p = 0.21); (g) Eu-LSCO (p = 0.21). Republished with permission from^[45]; (h) Longitudinal thermal conductivity κ_xx of NCCO (x = 0.04); (i) Thermal Hall conductivity κ_xy of NCCO (x = 0.04). Republished with permission from^[114]. The horizontal axes in the figures all represent the absolute temperature T (K).

Boulanger et al.^[118] studied two other cuprate Mott insulators, Nd₂CuO₄ and Sr₂CuO₂Cl₂, and found that they exhibit a similar negative κ_xy as La₂CuO₄, with results shown in Figure 8a,b,c,d,e,f. The trend of -κ_xy and κ_xx as a function of temperature is similar, both reaching a peak at approximately T ≈ 25 K. At T = 20 K, the magnitude of κ_xx in Nd₂CuO₄ is eight times that in Sr₂CuO₂Cl₂, and correspondingly, |κ_xy| increases by a factor of 10. This provides strong evidence for phonons as the thermal transport carriers.

Display Full Size

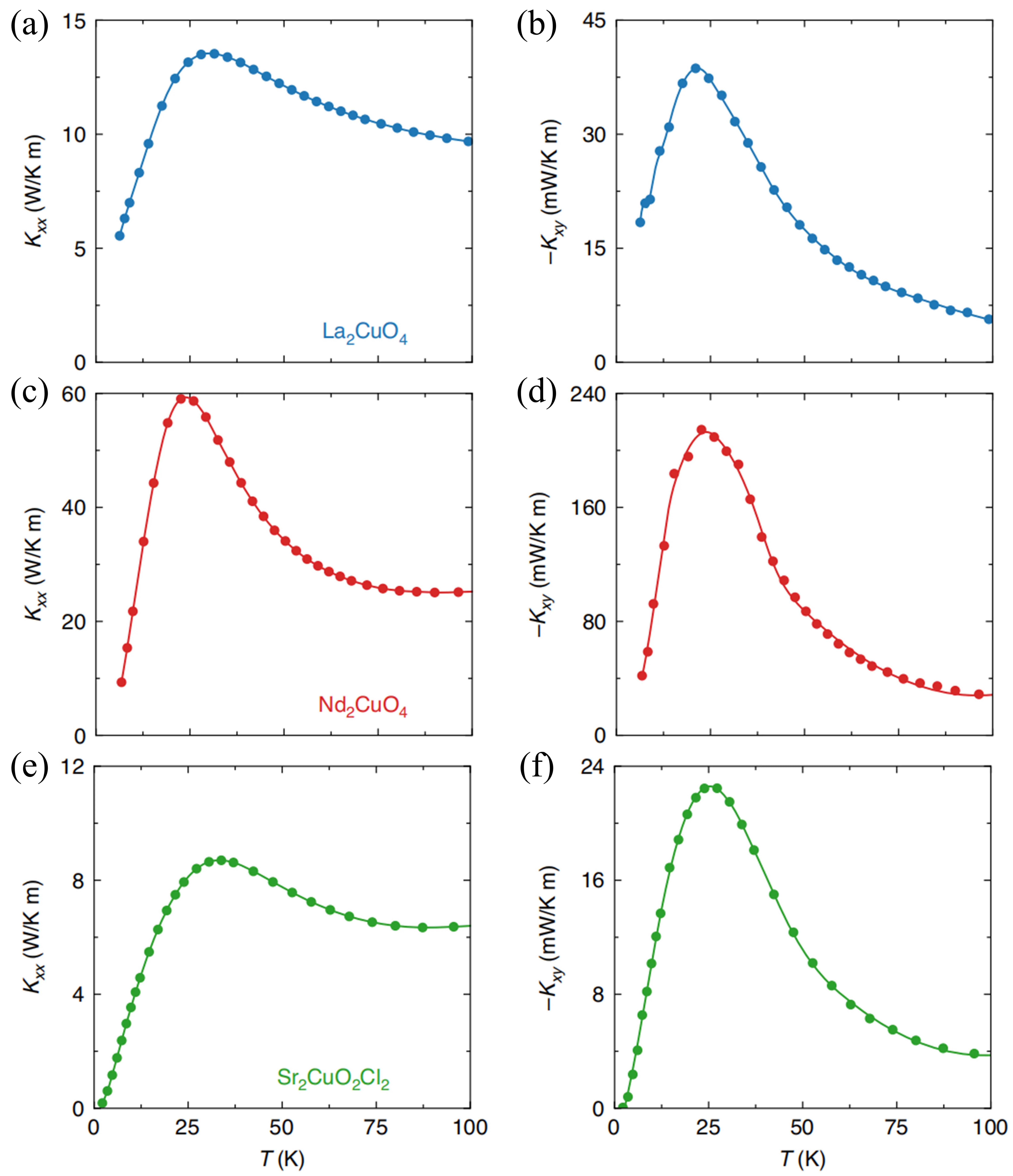

Figure 8. Thermal conductivity of three Mott insulators. Left side: Longitudinal thermal conductivity κ_xx: (a) La₂CuO₄; (c) Nd₂CuO₄; (e) Sr₂CuO₂Cl₂. Right side: Thermal Hall conductivity κ_xy: (b) La₂CuO₄; (d) Nd₂CuO₄; (f) Sr₂CuO₂Cl₂. The horizontal axes in the figures all represent the absolute temperature T (K). Republished with permission from^[118].

(4) (Zn_xFe_1-x)₂Mo₃O₈

Ideue et al.^[38] also discovered a giant thermal Hall response in another magnetic insulator (Zn_xFe_1-x)₂Mo₃O₈. (Zn_xFe_1-x)₂Mo₃O₈ is a multiferroic material, whose crystal structure shown in Figure 9a, forming a honeycomb lattice within each magnetic layer. The arrows in the figure indicate the DM vectors between adjacent sites, pointing in-plane. Since only DM vectors parallel to the magnetization direction can generate magnon Hall effect^[119], there is no magnon Hall effect resulting from DM interaction. Figure 9b,c,d show the thermomagnetic transport properties of (Zn_xFe_1-x)₂Mo₃O₈. From Figure 9b, it is evident that the specific heat C is scarcely influenced by the magnetic field B and is proportional to T³ at low temperatures. This indicates that thermal transport at low temperatures is predominantly phonon-dominated, and the magnetic field does not affect the phonon population. However, this contradicts the trend of the longitudinal thermal conductivity κ_xx (Figure 9c), a phenomenon the authors attribute to strong lattice-spin interactions within the material. The thermal Hall conductivity κ_xy changes markedly on either side of T_N = 50 K, as shown in Figure 9d. When the temperature is below T_N, κ_xy rapidly reaches a maximum and then decreases slowly with the magnetic field; above T_N, κ_xy increases gradually with the magnetic field. This indicates that κ_xy in different temperature regimes originates from distinct mechanisms, phonon transport changes qualitatively, and further experimental investigation is required.

Display Full Size

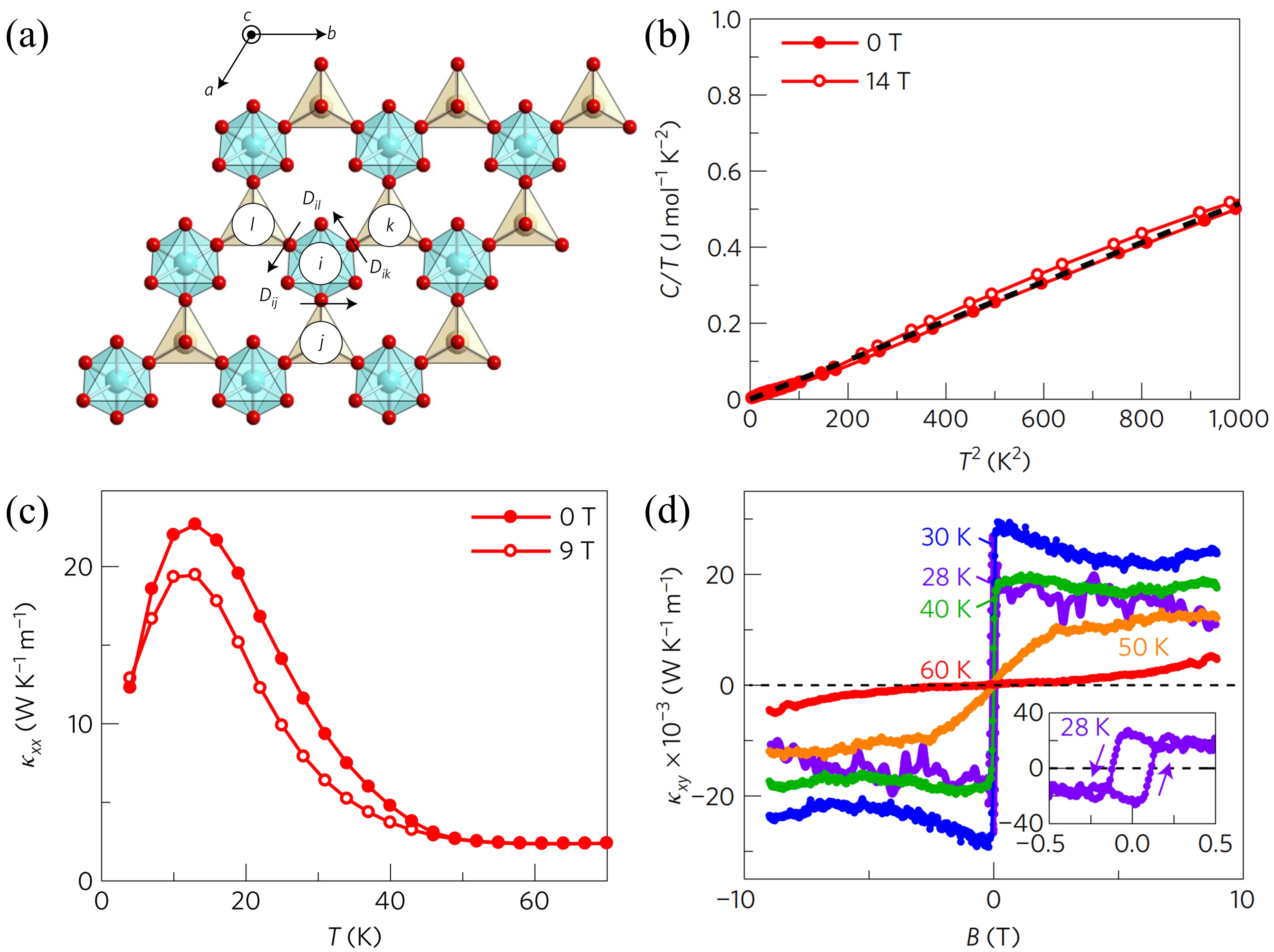

Figure 9. Crystal structure and thermal magnetic properties of (Zn_xFe_1-x)₂Mo₃O₈. (a) Crystal structure, with black arrows representing the DM vectors; (b) Temperature dependence of the specific heat; (c) Temperature dependence of the longitudinal thermal conductivity κ_xx; (d) Magnetic field dependence of the thermal Hall conductivity κ_xy. Republished with permission from^[38]. DM: Dzyaloshinskii-Moriya.

(5) Other materials

In the aforementioned magnetic insulators, the longitudinal thermal conductivity κ_xx is the sum of spin and phonon contributions, κ_xx = κ^sp_xx +κ^sp_xx. To distinguish between phonon and spin contributions to THE, Sugii et al.^[37] studied the thermal Hall signal in the insulating material Ba₃CuSb₂O₉ (BCSO). Due to the strong spin-lattice coupling and the presence of a spin gap in BCSO, it serves as an ideal compound for studying phonon quasi-particles. Below the temperature T_g ≈ 50 K, a spin-singlet state opens a spin gap^[120], which allows the phonon properties to be detected when spin excitations are gapped out. BCSO is a transparent insulator, consisting of a honeycomb network of Cu²⁺ ions. The κ_xy is negative over the entire temperature range, peaks around 50 K, and decreases at lower temperatures (Figure 10a). The temperature dependence of κ_xy at low temperatures gradually approaches κ_xy ∝ T², which does not align with previous theoretical models, and further investigation is needed to clarify the origin of the T² dependence in κ_xy. Additionally, Chen et al.^[121] studied another simpler material: Cu₃TeO₆, a cubic antiferromagnetic insulator. In Cu₃TeO₆, at T = 20 K and H = 15 T, the thermal Hall conductivity reaches an astounding 1 W·K^-1·m^-1, which is 50 times greater than that of Sr₂CuO₂Cl₂. As shown in Figure 10b,c, κ_xy and κ_xx of this material both reach their peaks at T = 17 K, indicating that κ_xy is primarily carried by phonons. Furthermore, although the κ_xy and κ_xx of Cu₃TeO₆ are much larger than those of typical materials, its thermal Hall angle |κ_xy/κ_xx| is the same as that of the other insulators. Moreover, when the temperature exceeds the Néel temperature T_N = 63 K, the magnetic magnons vanish, but the thermal Hall conductivity remains unchanged (Figure 10d), and the trend of |κ_xy/κ_xx| does not change. Therefore, THE in Cu₃TeO₆ is phonon-induced.

Display Full Size

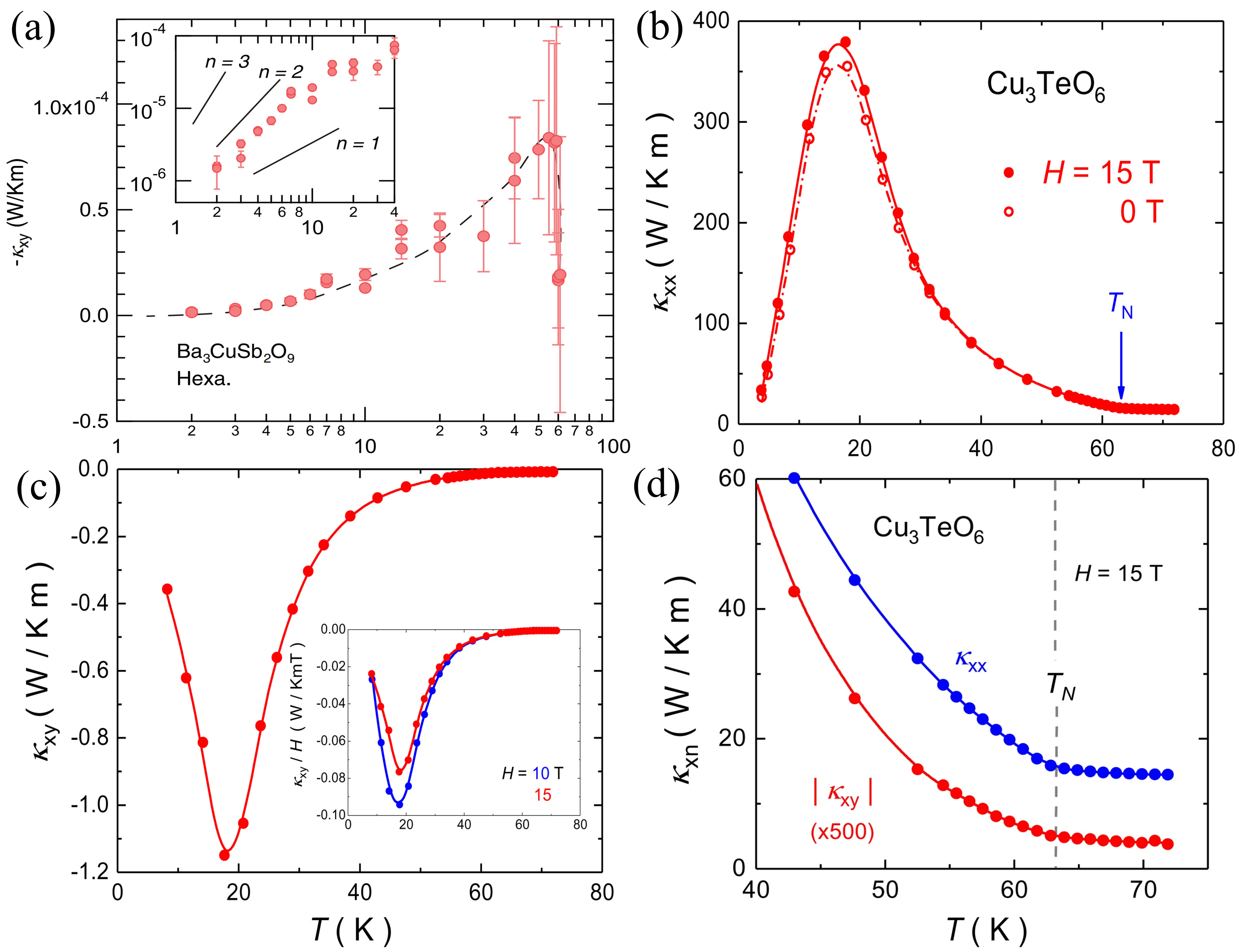

Figure 10. (a) Thermal Hall conductivity κ_xy as a function of temperature. Republished with permission from^[37]; (b) Longitudinal thermal conductivity κ_xx of Cu₃TeO₆ at zero field (open circles) and at magnetic field H = 15 T (solid circles); (c) Thermal Hall conductivity κ_xy of Cu₃TeO₆ at H = 15 T, inset shows κ_xy/H at 10 T and 15 T; (d) Comparison of the thermal Hall conductivity κ_ny (both κ_xx and κ_xy) of Cu₃TeO₆. Republished with permission from^[121]. The horizontal axes in the figures all represent the absolute temperature T (K).

PHE is widely observed in various insulating materials. In the non-magnetic insulator SrTiO₃, phonons are the dominant heat carriers, and experiments reveal a large thermal Hall conductivity. Its internal mechanism is basically clear: the thermal Hall signal originates from phonon scattering by domain walls induced by the antiferrodistortive transition. Materials similar to SrTiO₃ include BP, where phonons are the sole collective excitation mode. Subsequently, PHE has been widely observed in materials such as Tb₃Ga₅O₁₂, cuprates, Cu₃TeO₆, and (Zn_xFe_1-x)₂Mo₃O₈. The thermal Hall signals in these materials are phonon-dominated, but the mechanism by which phonons acquire transverse drift velocity within the materials remains unclear. Current explanations for the mechanism in Tb₃Ga₅O₁₂ mainly include two main scenarios: Raman spin-lattice interaction and phonon resonance skew scattering caused by superstoichiometric Tb³⁺ ions. However, which mechanism is operative, or how these scenarios are related, remains undetermined. The mechanism by which phonons in cuprates acquire chirality and generate transverse velocity is still unclear, and two proposed hypotheses await verification. To address these issues, some studies have proposed that PHE is a universal property intrinsic to non-magnetic insulators^[122]. Based on observations of a wide range of materials including SrTiO₃, SiO₂, MgO, MgAl₂O₄, Si, and Ge, they suggested the existence of a universal PHE in crystalline materials, with their thermal conductivity κ_xy all obeying the universal scaling law κ_xy ∝ κ_xx², as shown in Figure 11a,b,c. They argued that this universal PHE is influenced by domain wall scattering in SrTiO₃, by skew scattering from magnetic ions in Tb₃Ga₅O₁₂, and by short-range magnetic fluctuations in cuprates. Furthermore, experiments on non-magnetic control samples confirm that the extrinsic impurity skew scattering mechanism dominates in both pure-phonon and magnetic-resonance-enhanced phonon thermal transport^[123]. This finding provides an effective means to distinguish between the intrinsic and extrinsic contributions to the phonon THE. However, this perspective still fails to explain how the phases evolve across the critical doping (p*) in cuprates or what distinguishes them. The nature of the pseudogap phase remains enigmatic.

Display Full Size

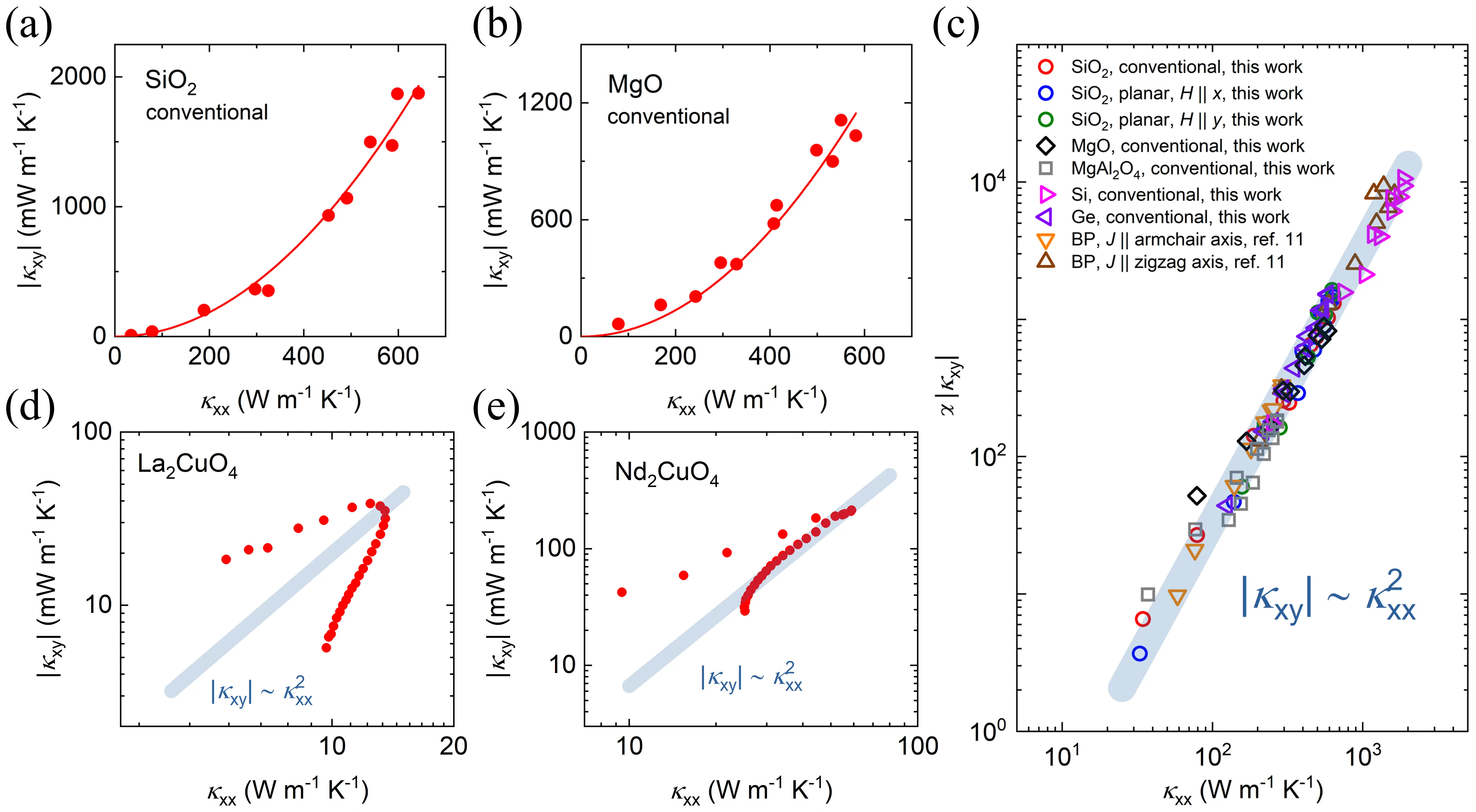

Figure 11. Scaling law of PHE in various materials. (a)SiO₂; (b)MgO; (c) The scaling law for non-magnetic insulators and semiconductors; (d)La₂CuO₄; (e)Nd₂CuO₄. Republished with permission from^[122].

As shown in Figure 11d,e, most magnetic insulators do not follow the aforementioned universal scaling law. From existing experimental data, the thermal Hall angle of PHE remains around 10^-3 regardless of material, maintaining consistency even in the magnetic insulator Cu₃TeO₆, as shown in Table 1. This characteristic is considered a hallmark of PHE, and is also regarded as the degree of chirality acquired by phonons, aiding in distinguishing PHE in materials with multiple heat carriers.

2.4 Magnon

Magnons are collective low-energy excitations in magnetic materials^[124], and they have attracted significant attention in the field of spintronics^[125]. In 2010, Katsura et al.^[42] first theoretically predicted the existence of the magnon Hall effect and proposed the theory of THE in insulating quantum magnets. The magnon Hall effect refers to THE dominated by magnons. Under the influence of a magnetic field and magnetic ordering, TR symmetry is broken, leading to a finite thermal Hall response. Katsura et al. considered the effect of the scalar (spin) chirality S_i·(S_j × S_k). Under finite scalar (spin) chirality, a virtual magnetic flux is generated within the material, thereby forming magnon-mediated THE. They discovered that in ferromagnetic materials with a kagome crystal structure (Figure 12a), the coupling of scalar (spin) chirality with the magnetic field leads to a nonzero thermal Hall conductivity. Unlike the kagome lattice, the triangular lattice has received less attention in the study of THE, as the scalar (spin) chirality between adjacent triangles cancels out. However, this cancellation is incomplete if the triangular lattice is distorted. Kim et al.^[47] found that in the material YMnO₃, due to the distortion of the triangular lattice (Figure 12b), the scalar (spin) chirality does not fully cancel (J₁ ≠ J₂), resulting in a finite THE. Notably, a finite thermal Hall conductivity persists in the paramagnetic phase of YMnO₃, which can be attributed to phonon skew scattering induced by scalar spin chirality^[126]. In addition to scalar (spin) chirality, a nonzero DM interaction in the system can also give rise to the magnon Hall effect. For the vast majority of magnon Hall effect, the mechanism is well explained by the nonzero Berry curvature induced by the DM interaction, as widely observed in materials such as Lu₂V₂O₇, perovskite oxides, Cu(1,3-bdc), van der Waals magnets, and FeCr₂S₄.

Display Full Size

Figure 12. (a) Unit cell of the kagome lattice (region enclosed by dashed lines). Republished with permission from^[42]; (b) Schematic of the triangular lattice with a 120° magnetic structure. Republished with permission from^[47].

(1) Lu₂V₂O₇

Shortly after the theoretical prediction, Onose et al.^[39] discovered the magnon Hall effect in the ferromagnetic insulator Lu₂V₂O₇, with the mechanism for generating the thermal Hall response being the DM interaction. Lu₂V₂O₇ is a ferromagnetic insulator with a pyrochlore structure, as shown in Figure 13a, and its sublattice is composed of corner-sharing tetrahedra. In this crystal structure, because the midpoint between any two vertices of the tetrahedron is not the inversion center, there exists a nonzero DM interaction:

Display Full Size

Figure 13. (a) The V sublattice of Lu₂V₂O₇, composed of corner-sharing tetrahedra; (b) Direction of the DM vector (D_ij) in the tetrahedra; (c) Relationship between the thermal Hall conductivity κ_xy and magnetic field at different temperatures in Lu₂V₂O₇. Republished with permission from^[39]. DM: Dzyaloshinskii-Moriya.

(2)$H_{DM}=\sum _{⟨ij⟩}{\overrightarrow{D}}_{ij}\cdot ({\overrightarrow{S}}_i\times {\overrightarrow{S}}_j)$

In the equation, D_ij and S_i are the DM vector between the i and j points and the spin moment at the i point, respectively, as shown in Figure 13b. The material has a Curie temperature of T_C = 70 K, and when the temperature is below 70 K, a clear thermal Hall conductivity κ_xy is observed, peaking around 50 K. However, upon heating to 80 K, κ_xy becomes indistinct. Figure 13c shows the variation of the thermal Hall conductivity of Lu₂V₂O₇ with magnetic field at different temperatures. The thermal Hall conductivity increases sharply and saturates in the low magnetic field region, indicating that κ_xy is influenced by spontaneous magnetization and is an anomalous Hall response. After saturation in the low-field region, the thermal Hall conductivity gradually decreases as the magnetic field increases, which can be explained by the magnon gap induced by the magnetic field. The phonon thermal Hall conductivity is proportional to the magnetic field strength, which does not align with the decrease of κ_xy in the high-field region. However, the number of magnons decreases as the magnetic field increases, which is more consistent with the trend of decreasing κ_xy, indicating that the thermal Hall conductivity in Lu₂V₂O₇ is dominated by magnons. To further study magnons, Matsumoto et al.^[48] demonstrated that magnon wave packets exhibit two types of rotational motions: spin rotation and motion along the sample boundary (edge currents). The latter is believed to be the cause of THE produced by magnon, arising from the nonzero Berry curvature induced by the DM interaction, which applies to the ferromagnetic insulator Lu₂V₂O₇. Besides Lu₂V₂O₇, researchers have also observed the magnon Hall effect in other pyrochlore structures. Ideue et al.^[27] observed the magnon Hall effect in In₂Mn₂O₇ and Ho₂V₂O₇. When the temperature falls below the Curie temperature T_C, a nonzero thermal Hall conductivity was observed. Its magnetic-field dependence and magnitude were found to be similar to those of Lu₂V₂O₇, which shares the same pyrochlore structure, thereby further confirming that THE is dominated by magnons.

(2) Perovskite oxide

The researchers extended this effect to transition metal (TM) oxides with a perovskite structure. In La₂NiMnO₆ and YTiO₃, the thermal Hall signal is absent or negligible, as shown in Figure 14a. In contrast, another perovskite oxide, BiMnO₃^[28], exhibits a pronounced thermal Hall response below its T_C, as shown in Figure 14b. This is because the unit cell of BiMnO₃ contains 16 TM ions, which helps avoid the vanishing of the Berry curvature due to symmetry. Theoretically, it was found that the nonzero Berry curvature in momentum space caused by DM interaction can account for the magnon Hall effect in perovskite systems. The excellent agreement between experimental data and theoretical calculations confirms that THE in ferromagnetic insulators is magnon-dominated.

Display Full Size

Figure 14. (a) Magnetic field dependence of the thermal Hall conductivity κ_xy in YTiO₃; (b) Magnetic field dependence of the thermal Hall conductivity κ_xy in BiMnO₃. Republished with permission from^[27].

(3) Cu(1,3-bdc)

Cu(1,3-bdc) is a kagome ferromagnetic insulator, and nonzero DM interaction can also arise within this material. In this material, nonzero Berry curvature arising from DM interaction is evident, leading to a large thermal Hall response^[29]. This is a ferromagnet with weak antiferromagnetic interlayer coupling. The spins within each plane exhibit ferromagnetic ordering, while the adjacent planes show antiferromagnetic ordering, with the spin directions aligned parallel to the kagome plane. When a magnetic field (μ₀H ≈ 0.05 T) is applied, the magnetic moments are fully polarized along the c-axis, as shown in Figure 15a. The longitudinal thermal conductivity κ_xx of Cu(1,3-bdc) suddenly increases after T = 1.8 K and depends on the magnetic field strength (Figure 15b). This indicates that at low temperatures, the thermal conductivity is composed of both phonons and magnons. When T > 10 K, κ_xx becomes independent of the magnetic field B, suggesting that the interaction between phonons and magnons can be neglected, as shown in Figure 15c. By subtracting the phonon contribution to the thermal conductivity at high fields, the magnon contribution κ_s can be obtained. Notably, the thermal Hall conductivity κ_xy of Cu(1,3-bdc) follows the same trend as κ_s (Figure 15d), indicating that they both originate from the same heat carriers, i.e., magnons, thereby ruling out the possibility of phonons^[30].

Display Full Size

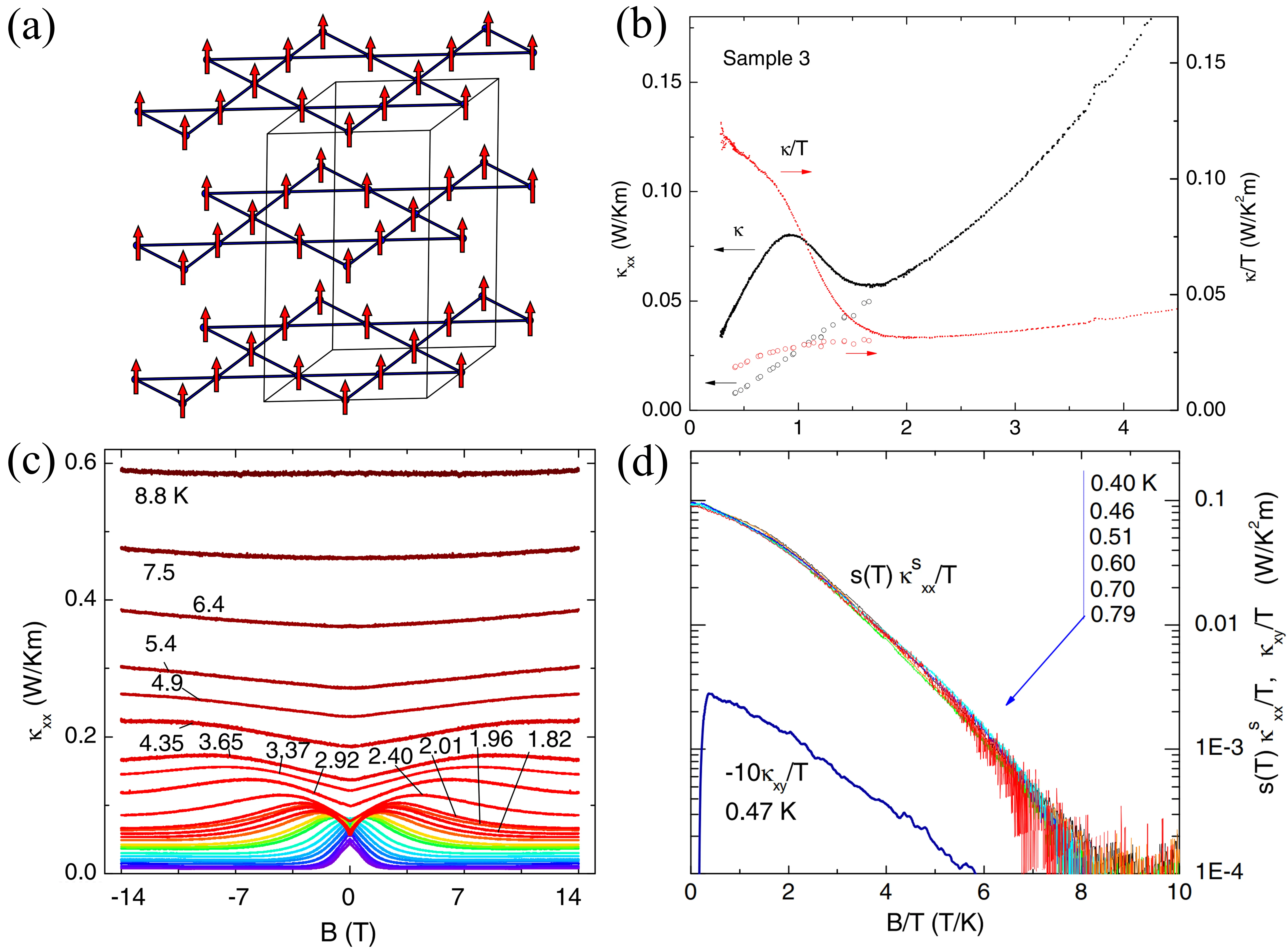

Figure 15. (a) Magnetic structure of Cu(1,3-bdc). Republished with permission from^[29]; (b) Temperature dependence of κ (black) and κ/T (red) for T < 4.5 K; (c) Magnetic field B dependence of the longitudinal thermal conductivity κ_xx at different temperatures; (d) Curves of κ_xx and κ_xy after multiplying by a scaling factor s(T). Republished with permission from^[30].

(4) Van der Waals magnet

Zhang et al.^[127] shifted their focus from kagome lattice materials to the two-dimensional van der Waals (vdW) magnet VI₃, where they observed the ATHE. Unlike the materials mentioned earlier, THE in VI₃ exhibits two regimes: at lower temperatures, it is phonon-dominated, induced by the coupling between magnetic excitations and phonons, while at higher temperatures, it is dominated by topologically protected magnon excitations carried by the ferromagnetic honeycomb lattice. As the magnetic field strength increases, the number of magnons is suppressed, leading to a decrease in κ_mag. In contrast, the suppression of magnons weakens phonon scattering, increases the mean free path, and thus enhances κ_ph. Figure 16a shows the temperature dependence of the longitudinal thermal conductivity κ_xx, which increases with the magnetic field, indicating that κ_xx is predominantly phonon-conducted and strongly influenced by magnon scattering. Figure 16b presents the relationship between κ_xy and magnetic field strength at T = 15 K, showing the typical hysteresis behavior of a ferromagnet. The maximum value of κ_xy reaches 1 × 10^-2 W·K^-1·m^-1, with the maximum thermal Hall angle of approximately 4.3 × 10^-3. Additionally, the thermal Hall signal remains even in the absence of an external magnetic field, suggesting the presence of ATHE. This study considers both magnons and phonons, enabling a direct probe of their coupling in a ferromagnetic system. The peculiar properties of VI₃ make it the first ferromagnetic system to study the anomalous coupling of magnons and phonons, and it holds potential as a platform for spintronics/magnonics applications. In contrast, the magnon Hall signal in another van der Waals magnet, CrI₃, is relatively small in the high-temperature region^[128]. However, CrI₃ shows a pronounced anomalous thermal Hall signal at lower temperatures, which could be related to magnon-phonon hybridization or magnon-phonon scattering. The thermal Hall signal no longer depends solely on magnons or phonons but is influenced by the coupling between the two. As for the two-dimensional van der Waals antiferromagnet FeCl₂, the resulting thermal Hall conductivity κ_xy is shown in Figure 16c^[129]. When the temperature is below T_N = 23.5 K, κ_xy increases with the magnetic field, then sharply transitions near 1.5 T. These features rule out the possibility that the thermal Hall signal is purely phonon-generated or driven by phonons induced by internal magnetization. Instead, κ_xy in FeCl₂ may be related to magnon-phonon hybridization. The data obtained from theoretical calculations exhibit remarkable qualitative similarity to the experimental results, as shown in Figure 16d. However, this calculation cannot rule out contributions from mechanisms such as magnon-phonon scattering; the specific mechanism requires further investigation. Another analogous antiferromagnet is MnPS₃^[130]. Theoretical calculations demonstrate that the intrinsic Berry curvature arising solely from magnon-phonon hybridization cannot fully account for the giant thermal Hall signal measured experimentally. This finding strongly indicates that magnon-phonon scattering mechanisms are instrumental in driving the transverse thermal transport. The above research indicates that magnons and phonons in two-dimensional van der Waals ferromagnets and antiferromagnets strongly couple and mutually influence each other, making them potential systems for studying the coupled transport of multiple heat carriers.

Display Full Size

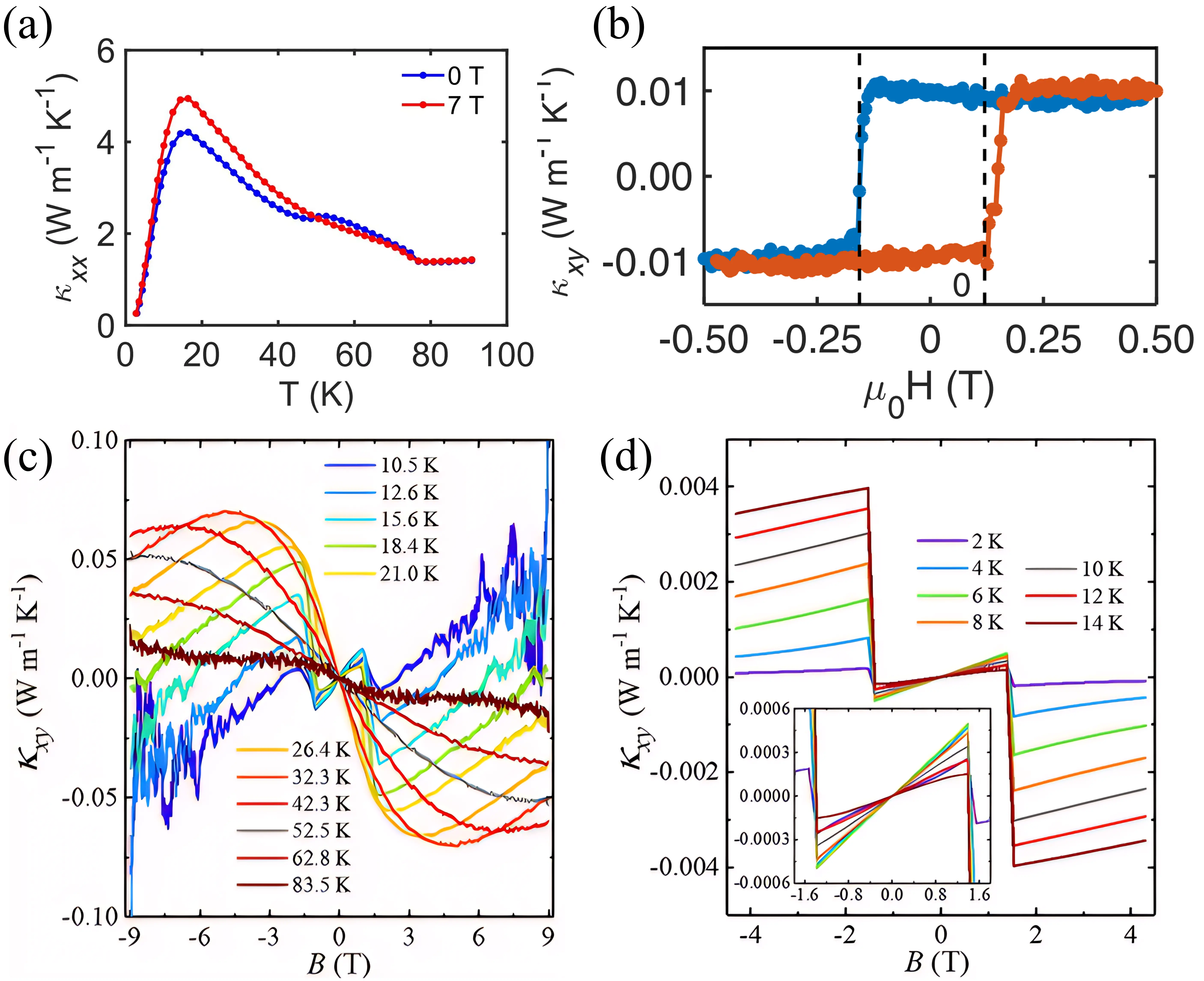

Figure 16. (a)-(b) Thermal conductivity of VI₃: (a) Temperature dependence of the longitudinal thermal conductivity κ_xx; (b) Magnetic field dependence of the thermal Hall conductivity κ_xy. Republished with permission from^[127]; (c) Magnetic field dependence of the thermal Hall conductivity κ_xy in FeCl₂ at different temperatures; (d) Calculated thermal Hall conductivity of FeCl₂ with magnon-phonon coupling constant g = 1.0. Republished with permission from^[129].

(5) FeCr₂S₄

Recently, Zhou et al.^[33] studied the ferrimagnetic spinel FeCr₂S₄. As the magnetic field increases, the thermal Hall conductivity κ_xy of FeCr₂S₄ shows saturation behavior similar to that of the ferromagnetic magnetization (Figure 17a). At 50 K and a small magnetic field of 0.1 T, the thermal Hall conductivity reaches its maximum value of κ_xy = 1.8 × 10^-2 W·K^-1·m^-1, as shown in Figure 17b. Fitting the FeCr₂S₄ data using κ_xy/T = exp(-T/T₀) + C results in excellent agreement with experimental data, confirming that this thermal Hall response arises from nonzero Berry curvature, as indicated by the red dashed line in the inset of Figure 17b. Notably, FeCr₂S₄ exhibits the largest thermal Hall angle |κ_xy/κ_xx| ≈ 7 × 10^-3 reported in an insulator at the peak of κ_xy, suggesting a significant degree of chirality in the internal heat carriers of the material. Moreover, the maximum value of κ_xy occurs at a small magnetic field of 0.1 T, greatly reducing the difficulty in device design and offering the possibility for future magnetic field-controlled thermoelectric devices designs.

Display Full Size

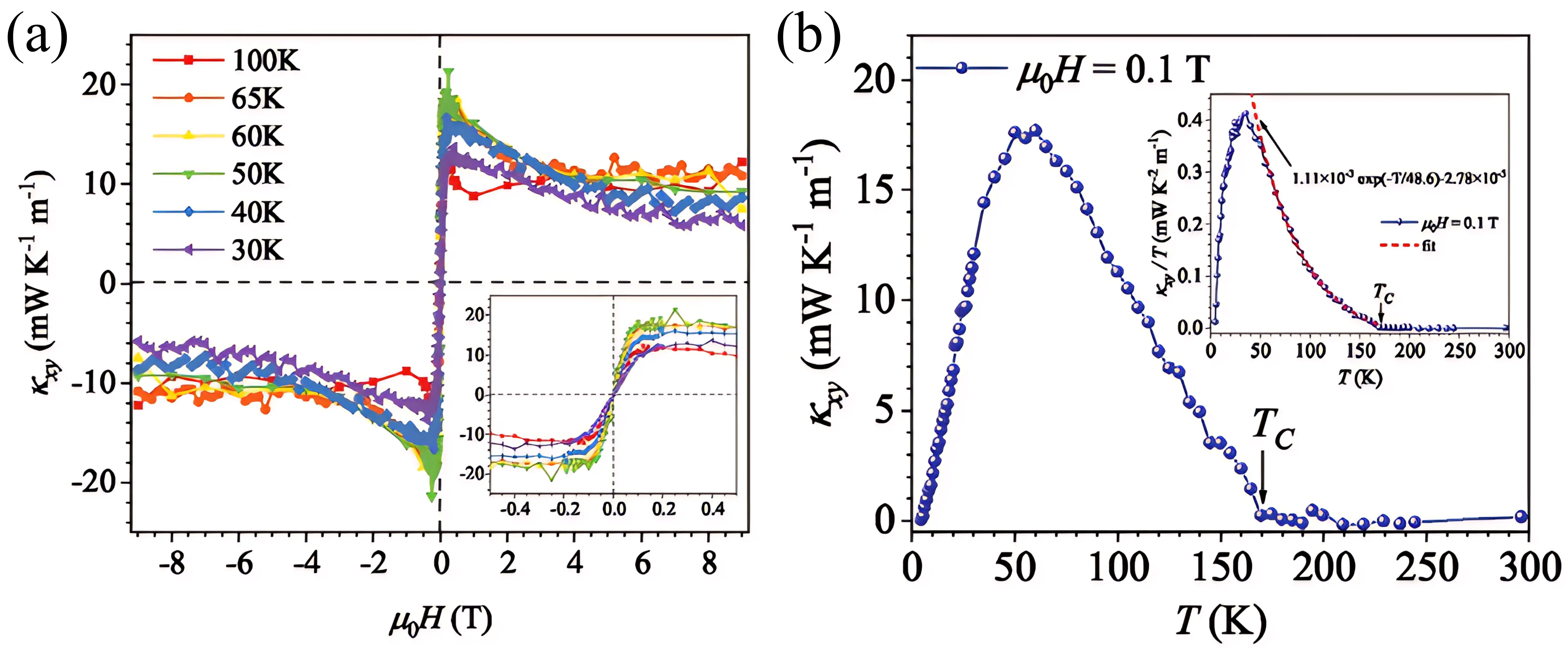

Figure 17. (a) Magnetic field dependence of the thermal Hall conductivity κ_xy in FeCr₂S₄ at different temperatures; (b) Temperature dependence of the thermal Hall conductivity κ_xy in FeCr₂S₄ under a 0.1 T magnetic field. Republished with permission from^[33].

Above, we discussed THE generated by magnons (S = 1), whose transverse response primarily arises from a nonzero Berry curvature induced by the DM interaction. In contrast, within the spin-liquid (SL) regime of kagome antiferromagnets, long-range order is suppressed by quantum fluctuations and the internal heat carriers become fractionalized spinons. These are distinct manifestations of magnetic excitations in different phases. Below, taking volborthite and Ca kapellasite as examples, we introduce THE arising from magnetic excitations in the SL state and compare it with that in ferromagnetic kagome materials. Unlike Cu(1,3-bdc), volborthite is a kagome antiferromagnet that exhibits a spin-liquid state in the temperature range T_N < T < T*~J_eff/k_B^[31]. Using the experimental setup shown in Figure 18a, κ_xy(T) was measured. Using the experimental setup shown in Figure 18a, the temperature dependence of the thermal Hall conductivity was measured. When the temperature falls below T*~60 K, a finite thermal Hall signal appears (Figure 18c). As the temperature decreases, κ_xy first increases gradually, then rises sharply around 30 K, and, after reaching a maximum near 15 K, drops sharply. Moreover, when κ_xy reaches a peak at T_p, the magnetic susceptibility χ also attains a maximum (inset of Figure 18c). These results indicate that THE in volborthite originates from magnetic excitations (spinons) in the SL state rather than from phonons. It is noteworthy that, owing to the low symmetry of its distorted kagome structure, there exists a nonzero DM interaction with D/J~0.1. Although the DM strength in Cu(1,3-bdc)^[30] is similar (D/J~0.15), its thermal Hall conductivity is larger than that of volborthite by 1-2 orders of magnitude. This implies a distinct origin of the thermal Hall response in antiferromagnets and ferromagnets and warrants further exploration. Doki et al.^[32] likewise observed a pronounced thermal Hall response in another kagome antiferromagnet, Ca kapellasite (Figure 18b), with D/J~0.1. As shown in Figure 18d, this material exhibits a temperature dependence similar to that of volborthite, further indicating that THE in both arises from magnetic excitations in the SL state. Theoretically, Schwinger-boson mean-field theory (SBMFT) can reproduce κ_xy both qualitatively and quantitatively; by adjusting J and D, the κ_xy values can be collapsed onto a single curve. The solid line in Figure 18e presents the SBMFT numerical result for D/J = 0.1, whose temperature dependence agrees with the experiment.

Display Full Size

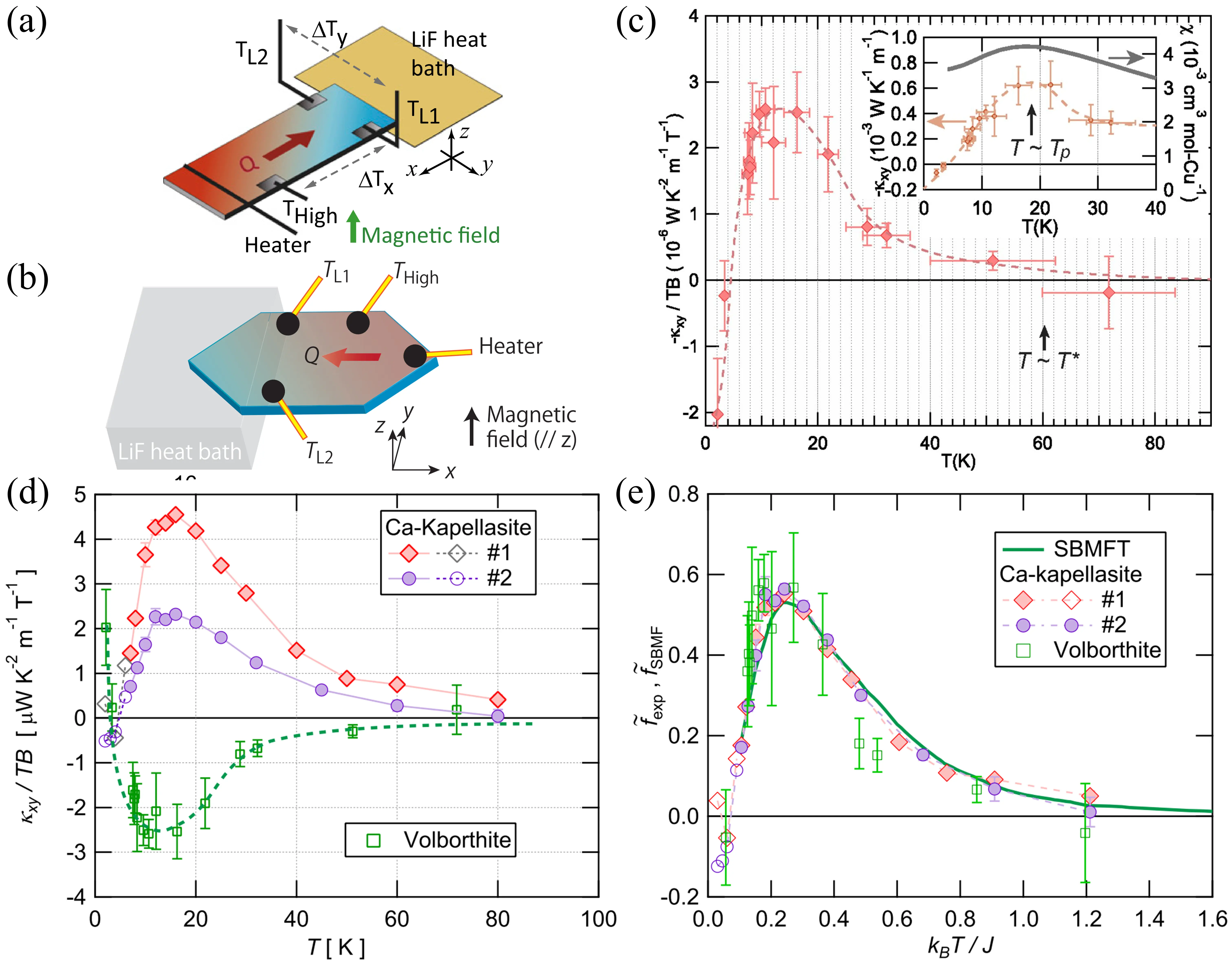

Figure 18. (a) Experimental setup for volborthite; (b) Experimental setup for Ca kapellasite; (c) Temperature dependence of -κ_xy/TB at H = 15 T in volborthite. Republished with permission from^[31]; (d) Temperature dependence of κ_xy/TB for Ca kapellasite (samples #1 and #2) and volborthite; (e) Variation curves of the dimensionless thermal Hall conductivity f_exp(k_BT/J) and f_SBMF(k_BT/J). Republished with permission from^[32].

Magnons, as collective low-energy excitations in magnetic materials, are widely present in various magnetic materials. Regarding the magnon Hall effect, there are two principal mechanisms: scalar (spin) chirality and the nonzero DM interaction. Scalar (spin) chirality exists in ferromagnets with kagome crystal structures and couples with the magnetic field to yield a nonzero κ_xy. The existence of a nonzero DM interaction is more universal than scalar (spin) chirality, being widely present in ferromagnetic and antiferromagnetic insulators, such as Lu₂V₂O₇, Cu(1,3-bdc), volborthite, Ca kapellasite, etc. The nonzero Berry curvature in momentum space induced by the DM interaction can account for the magnon Hall effect in most materials and is widely accepted by researchers. However, in magnetic insulators, heat transport is carried by two heat carriers: phonons and magnons. How can we determine which carriers generate THE, whether they are coupled, and what their relative contributions are? These issues remain to be resolved. In BCSO material, due to strong spin-lattice coupling and the presence of a spin gap, phonon thermal transport can be probed in the absence of magnons. In systems where both contribute, how can their respective signals be separated? As noted above, PHE is widely present in crystals. However, in these magnetic insulators, the variation of κ_xy no longer tracks the κ_xx trend, making it difficult to establish the existence of PHE. Even if it exists, magnon effects on PHE remain unclear. Table 2 lists the thermal Hall signals in the aforementioned materials; compared to phonons, their thermal Hall conductivity is consistently smaller, which is likely attributable to magnon–phonon coupling and/or the low mobility of magnons.

2.5 Exciton

As a composite particle, an exciton possesses properties that are fundamentally different from those of elementary particles such as electrons, photons, phonons, and magnons.

Initially, researchers focused on the spin Hall effect induced by excitons. Leyder et al.^[131] were the first to experimentally verify the optical spin Hall effect, whose mechanism arises from the separation of exciton polarons in both real and momentum space. Banerjee et al.^[132] predicted that the nonlinear interaction between excitons and polarons would give rise to a topological valley Hall effect. Alireza et al.^[133] observed the spin Hall effect induced by nonlinear excitons in monolayer transition metal dichalcogenides (TMDs). The internal spin current is strongly influenced by the exciton effects, as shown in Figure 19. Figure 19b displays the structure of monolayer TMDs in the 1H phase. The aforementioned works all demonstrate the spin Hall effect induced by excitons due to various mechanisms. In 2017, Iwasa et al.^[34] reported a completely different exciton Hall effect (EHE). The Hall effect generated by exciton-polarons arises from an external scattering process within the cavity and the subsequent pseudospin precession^[131], whereas this EHE originates from intrinsic Berry curvature. Due to laser illumination, a gradient of temperature and chemical potential is formed on the monolayer, causing lateral motion of the exciton quasi-particles, as shown in Figure 19c. The intrinsic two-dimensional characteristics of monolayer MoS₂ allow excitons to exist stably, while the transverse velocity induced by Berry curvature indicates the presence of EHE. The authors directly observed the THE of excitons in monolayer MoS₂ using photoluminescence spectra under different polarizations, as shown in Figure 19d. When x lies in the range 3.2 µm < x < 4.5 µm, the splitting of the peak positions of the σ⁺ and σ⁻ components clearly indicates the generation of EHE. The exciton thermal Hall angle in monolayer MoS₂ is much larger than that of independent electrons, suggesting that the quantum transport characteristics of composite particles are significantly influenced by their internal structure. This achievement not only addresses the fundamental issue of the Hall effect in composite particles but also provides a new approach for exploring valleytronic devices based on excitons in two-dimensional materials.

Display Full Size

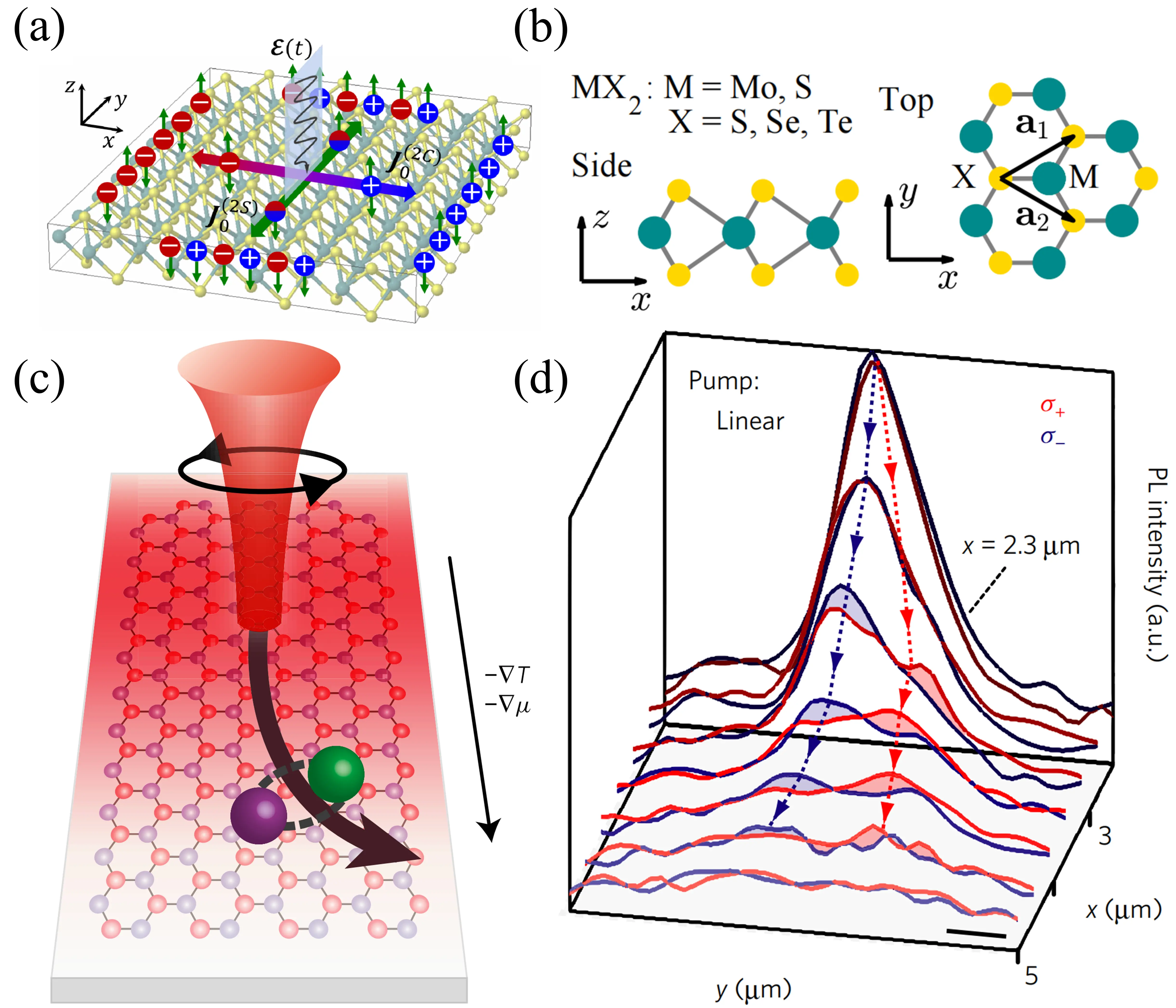

Figure 19. (a) Nonlinear exciton spin Hall effect in monolayer TMDs; (b) Top and side views of monolayer TMDs in the 1H phase. Republished with permission from^[132]; (c) Schematic diagram of the exciton Hall effect; (d) Polarization-resolved PL mapping under linearly polarized excitation. Republished with permission from^[34]. TMDs: transition metal dichalcogenides.

Excitons, as elementary particles formed by bound electron-hole pairs, exhibit properties that are fundamentally different from single particles. EHE originates from the intrinsic Berry curvature, which gives rise to a transverse velocity. Currently, EHE has only been reported in monolayer MoS₂, significantly limiting its application scenarios. Can EHE be experimentally measured in other two-dimensional transition metal dichalcogenides? Experiments have shown that the thermal Hall angle of excitons is much larger than that of free electrons. This observation warrants further investigation. Furthermore, individual experimental findings lack systematic verification and comparative studies across multiple material systems, which warrants expanded investigation.

In summary, the mechanisms responsible for transverse transport in some materials are reasonably well understood, such as domain wall scattering of phonons in SrTiO₃; strong phonon scattering induced by Cu²⁺ spins in BCSO; scalar (spin) chirality in YMnO₃; and a nonzero Berry curvature induced by the DM interaction in most magnetic insulators. However, the microscopic mechanisms in many materials remain unclear, including the nature of the pseudogap phase in cuprates, the origin of phonon chirality, the apparent lack of materials satisfying the “resonance condition,” and the distinct origins of different thermal Hall signals in ferromagnetic and antiferromagnetic materials. Table 3 summarizes reported THE signals for which the heat carriers are relatively well identified. Compared with other materials, although their internal mechanisms are uncertain, the heat carriers responsible for THE have been largely established, and corresponding hypotheses have been proposed, which still require further verification.

2.6 Controversial

Current research on THE remains in an early stage, with the identity of the thermal carrier responsible for the effect in certain materials still unclear or highly debated. Below, we introduce several specific materials where the carrier governing THE is not clearly identified, including the frustrated quantum magnet Tb₂Ti₂O₇ and the quantum spin liquid candidate α-RuCl₃.

(1) Tb₂Ti₂O₇

Tb₂Ti₂O₇ possesses a pyrochlore structure and is a frustrated quantum magnet^[134]. In frustrated quantum magnets, despite the presence of strong exchange interactions between spins, long-range magnetic order does not develop. Tb₂Ti₂O₇ exhibits a significant thermal Hall response below 15 K, as shown in Figure 20a. Hirschberger et al.^[135] suggested that this response originates from spin excitations and exhibits distinct characteristics compared to magnons. When the direction of the heat flux density J^q is reversed, the sign of the thermal Hall angle -∂_yT/|∂_xT| changes, while its magnitude remains constant (2%), confirming that the thermal Hall signal is intrinsic (Figure 20b). When the power is increased threefold (90→270 µW), the -∂_yT/|∂_xT| remains almost unchanged, demonstrating that the response is linear. Figure 20c plots the temperature dependence of κ/T for different samples. The trend of κ/T below 15 K contradicts the power-law T^a dependence (a > 2) predicted by the magnon model^[48], indicating a behavior distinct from that of magnons. Additionally, the constant value of κ/T below 1 K in Tb₂Ti₂O₇ does not correspond to phonon conduction (Figure 20c). Despite the small κ, the tanθ_H at 1 T is still 90 times larger than in TGG, providing strong evidence that κ_xy does not originate from phonons. The authors suggest that their results point to a neutral excitation influenced by a novel Lorentz force, F_L = e_sv × B, where e_s is the effective charge and v is the drift velocity driven by -∇T. Subsequently, Hirschberger et al.^[136] reported another pyrochlore magnetic insulator, Yb₂Ti₂O₇, with its thermal Hall signal shown in Figure 20d. By comparing the κ_xx values of three rare-earth titanates, R₂Ti₂O₇ (R = Tb, Yb, Y), they found that the trend did not match κ_xy, ruling out phonon skew scattering as the dominant source of κ_xy, as shown in Figure 20e. Furthermore, when Yb₂Ti₂O₇ is in the field-aligned ferromagnetic state, magnon excitations are observed in the inelastic neutron scattering spectra.

Display Full Size

Figure 20. (a) Magnetic field dependence of the thermal Hall conductivity κ_xy/T in Tb₂Ti₂O₇ at different temperatures; (b) Magnetic field dependence of the thermal Hall angle -∂_yT/|∂_xT| at T = 15 K in Tb₂Ti₂O₇; (c) Temperature dependence of the longitudinal thermal conductivity κ/T for samples 1 and 2. Republished with permission from^[135]; (d) Scaling analysis of κ_xy/T in Yb₂Ti₂O₇ in the field-aligned ferromagnetic state. Republished with permission from^[136]; (e) Comparison of the longitudinal thermal conductivity κ_xx in different R₂Ti₂O₇ materials. Phonon scattering is strongest in R = Tb at low temperatures^[135], and weakest in the non-magnetic R = Y. Republished with permission from^[137].

Based on the aforementioned results, researchers have suggested that THE in the pyrochlore structure originates from spin excitations. However, Hirokane et al.^[137] presented a different viewpoint, proposing that phonons are the source of the thermal Hall conductivity in Tb pyrochlore oxides. To distinguish between THE arising from phonons and that from magnetic excitations, magnetic moment dilution was employed, where 70% of the Tb³⁺ ions were substituted with Y³⁺ ions. Figure 21a shows the temperature dependence of the longitudinal thermal conductivity κ_xx for (Tb_0.3Y_0.7)₂Ti₂O₇, compared with the data for Y₂Ti₂O₇ and Tb₂Ti₂O₇ from the literature^[138]. Notably, the thermal conductivity of Y₂Ti₂O₇ exhibits a typical phonon-type temperature dependence. The thermal conductivity of Tb₂Ti₂O₇ is significantly suppressed, indicating strong scattering of phonons by the Tb³⁺ magnetic moments. However, when Tb³⁺ is partially replaced by Y³⁺, the thermal conductivity remains very similar to that of Tb₂Ti₂O₇. Figure 21b plots the temperature dependence of κ_xy/T at 6 T for (Tb_0.3Y_0.7)₂Ti₂O₇ and Tb₂Ti₂O₇^[135], clearly showing that the substitution of Tb³⁺ with Y³⁺ does not decrease κ_xy/T; instead, it increases it. In conclusion, the observed thermal Hall conductivity in the diluted system contradicts the magnetic excitation mechanism for THE. Therefore, Hirokane et al. suggest that THE in this system is primarily caused by phonons. Sharma et al.^[139] measured THE in the non-magnetic insulator Y₂Ti₂O₇, using an experimental setup as shown in the inset of Figure 21d, consisting of a heater, a heat sink, and three thermometers. By partially or fully substituting Dy³⁺ ions for Y³⁺ ions, they investigated the impact of magnetic properties on THE of this structure. Figure 21c and d show the temperature dependence of the longitudinal thermal conductivity and thermal Hall conductivity for Y₂Ti₂O₇, Dy₂Ti₂O₇, and DyYTi₂O₇. The temperature dependence of the longitudinal thermal conductivity (κ_xx) for all three materials exhibits typical phonon behavior, peaking around 15 K. The thermal Hall conductivity (κ_xy) for each sample also exhibits a peak (Figure 21d), with its temperature coinciding with the peak temperature of κ_xx, consistent with the characteristics of phonon carriers. Additionally, the thermal Hall angle, which represents the level of chirality, |κ_xy/κ_xx|, remains in the range of 10^-3-10^-4, in agreement with the previously observed magnitudes of the thermal Hall angle caused by phonons. These findings further support the notion that THE in the pyrochlore structure originates from phonons, contradicting the initially hypothesized magnetic excitations. However, these studies do not entirely rule out the presence of additional magnetic excitation components in Tb₂Ti₂O₇. Both explanations correspond to experimental phenomena, yet the relative contributions of the two carriers remain unclear and require further investigation.

Display Full Size

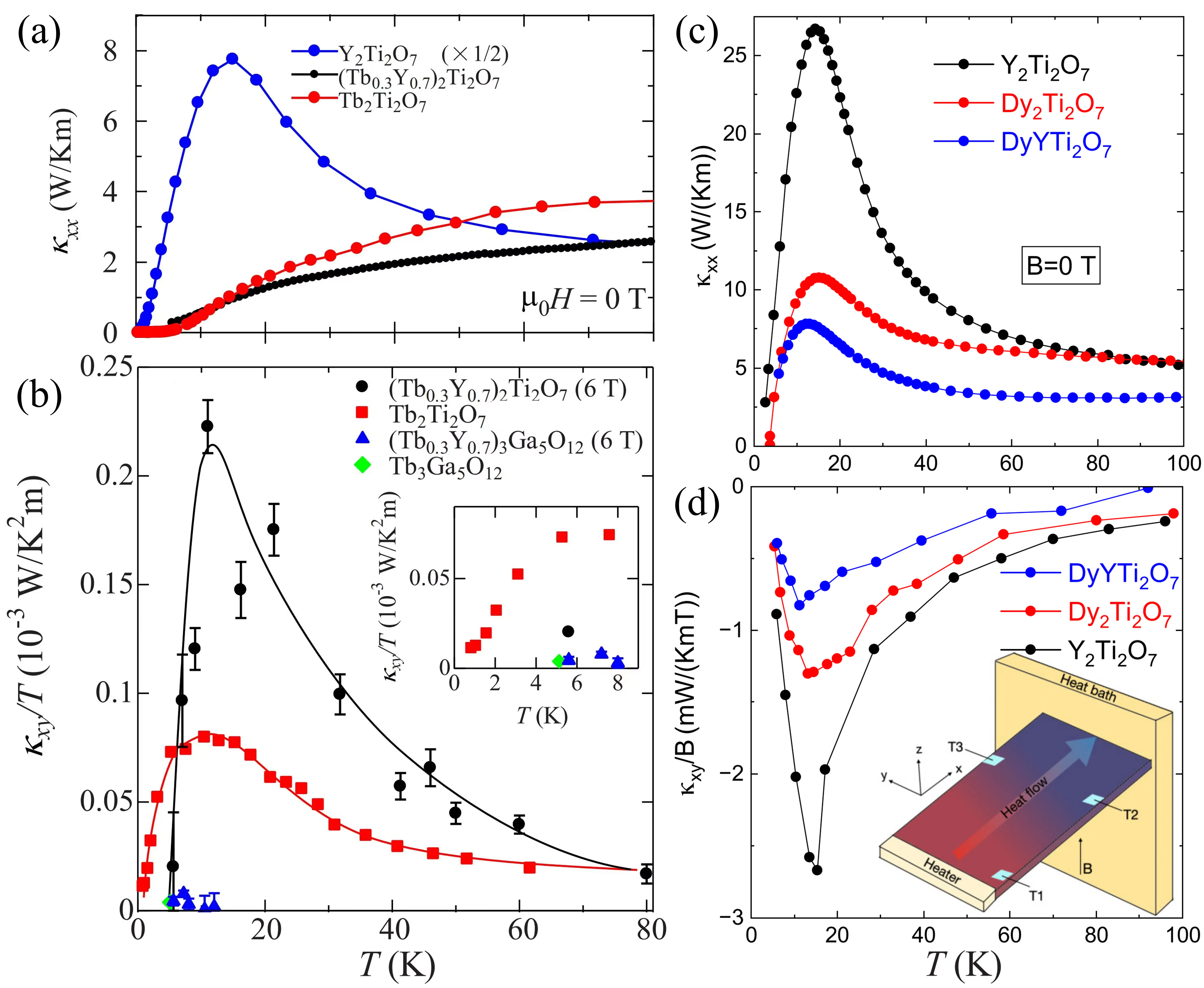

Figure 21. (a) Temperature dependence of the longitudinal thermal conductivity κ_xx in (Tb_0.3Y_0.7)₂Ti₂O₇; (b) Temperature dependence of κ_xy/T at H = 6 T for (Tb_0.3Y_0.7)₂Ti₂O₇ and (Tb_0.3Y_0.7)₃Ga₅O₁₂. Republished with permission from^[138]. The temperature dependence of κ_xy/T for Tb₂Ti₂O₇ at 6 T and Tb₃Ga₅O₁₂ at 3 T is reproduced from the literature^[99,135]; (c) Longitudinal thermal conductivity κ_xx measured at zero magnetic field for Y₂Ti₂O₇, Dy₂Ti₂O₇, and DyYTi₂O₇; (d) The corresponding thermal Hall conductivity κ_xy/B after magnetic field normalization. The inset shows a schematic of the experimental setup. Republished with permission from^[139]. The horizontal axes in the figures all represent the absolute temperature T (K).

(2) α-RuCl₃

Quantum Spin Liquid (QSL) is a unique state of quantum matter in which long-range magnetic order is suppressed due to extensive quantum fluctuations, even at zero temperature^[140-142]. As a representative QSL candidate, α-RuCl₃ has been the subject of extensive study.

α-RuCl₃ is a quasi-two-dimensional material with a honeycomb lattice structure formed by Ru ions^[143]. Under the influence of a longitudinal heat current and an external magnetic field, this material generates a significant transverse heat flow. The exact nature of the heat carriers responsible for THE in α-RuCl₃ remains unsettled, though Majorana fermions have been widely proposed. These particles are their own antiparticles and possess half the degrees of freedom of traditional fermions^[144-146]. Nomura et al.^[147] predicted that Majorana fermions would appear in the Kitaev quantum spin liquid^[148], and such particles may exist in α-RuCl₃. In the Kitaev quantum spin liquid, spins are divided into two types of Majorana fermions: one is a localized Z₂ flux, and the other is a gapless, mobile Majorana mode at zero field. In 2018, Kasahara et al.^[149] first reported ATHE in α-RuCl₃. The study found that, when the temperature dropped below the characteristic temperature of the Kitaev interaction (J_K/k_B~80K), the material transitioned from a conventional paramagnetic state to a Kitaev paramagnetic state. Although the zero-temperature characteristics are masked by the magnetic ordering at T_N = 7K, a large positive thermal Hall conductivity κ_xy was observed in α-RuCl₃ for temperatures in the range T_N < T < J_K/k_B. The experimental results, shown in Figure 22a, demonstrate the temperature dependence of κ_xy/T at different magnetic fields. The data indicate that the two-dimensional pure Kitaev model can quantitatively reproduce the experimental values above T_N, indicating that the thermal Hall response in this region arises from the intrinsic excitations of the Kitaev spin liquid, namely Majorana fermions (Figure 22b). Hentrich et al.^[150] experimentally confirmed this viewpoint. Above T_N = 7K, the thermal Hall conductivity κ_xy sharply increases with temperature under a perpendicular magnetic field, reaching a maximum around 30 K, and eventually disappearing at T > 125 K, as shown in Figure 22d. Meanwhile, the Kasahara team observed a half-integer THE in α-RuCl₃^[151]. When the magnetic field was tilted relative to the sample surface and the heat flow was along the a-axis, a quantized plateau in κ_xy/T was observed, as shown in Figure 22c. Figure 22e shows the phase diagram of α-RuCl₃ at different temperatures and magnetic fields. A quantized plateau appears when the temperature is below 5.5 K and the magnetic field µ₀H_|| exceeds 7 T, providing evidence for the existence of Majorana fermions. To assess the reproducibility of the half-integer quantized THE in α-RuCl₃, Yamashita et al.^[152] investigated the sample dependence of the half-integer THE. By studying single-crystal samples under tilted magnetic fields, a quantized plateau was observed in sample A, which exhibited the largest longitudinal thermal conductivity, as shown in Figure 22f. This result once again confirms the presence of Majorana fermions in α-RuCl₃.

Display Full Size

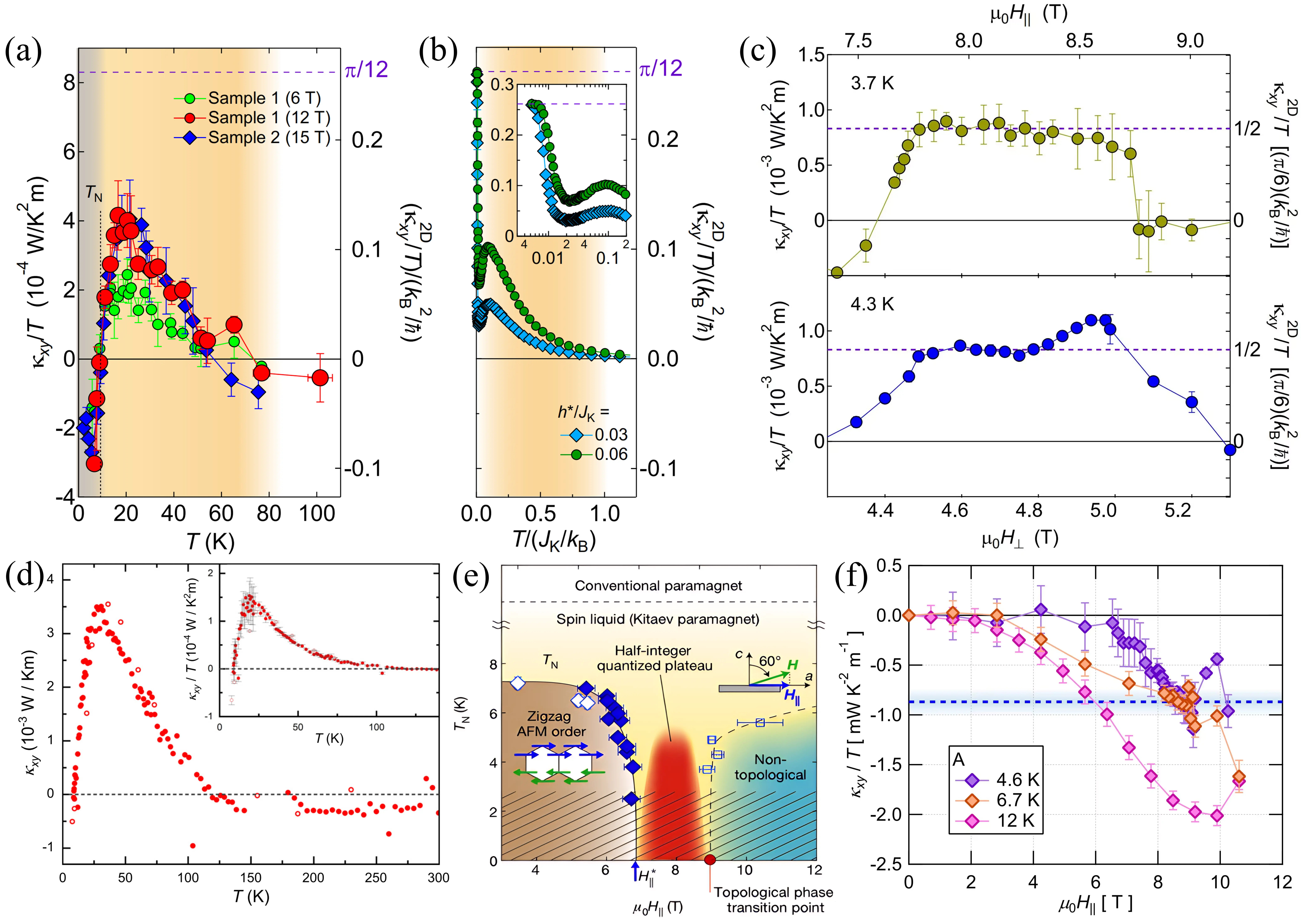

Figure 22. (a) Temperature dependence of the thermal Hall conductivity κ_xy/T in α-RuCl₃ at different magnetic fields; (b) Numerical results of the pure Kitaev model under an effective magnetic field (h*). Republished with permission from^[149]; (c) Magnetic field dependence of the thermal Hall conductivity κ_xy/T in α-RuCl₃ under a tilted magnetic field θ = 60^◦; (d) Temperature dependence of the thermal Hall conductivity κ_xy as a function of temperature at |B_z| = 16T in α-RuCl₃. Republished with permission from^[150]; (e) Phase diagram of α-RuCl₃ at a tilted magnetic field θ = 60^◦. Republished with permission from^[148]; (f) Magnetic field dependence of the thermal Hall conductivity κ_xy/T in sample A. The dashed line corresponds to the value of the half-integer quantized thermal Hall effect. Republished with permission from^[152].

Based on current findings, there remains controversy regarding the nature of the heat carriers in α-RuCl₃. Some researchers have proposed that the heat carriers in this material are phonons, based on the similarity between the κ_xx and κ_xy curves in the experimental results. Hentrich et al.^[153] measured the thermal conductivity κ_ab in the ab-plane and the out-of-plane thermal conductivity κ_c along the c-axis under an applied magnetic field. As shown in Figure 23a,b, when B < B_c (regime I), κ_ab decreases slightly with increasing magnetic field; when B > B_c (regime II), κ_ab increases rapidly with the magnetic field, accompanied by a sudden low-temperature suppression of κ_ab. This behavior can be explained by phonon scattering caused by magnetic excitations. In regime I, the magnetic excitations are low-energy and nearly gapless, strongly scattering the phonons. In regime II, as the magnetic field increases and the gap opens, phonon scattering decreases, and the thermal conductivity increases. As the temperature further rises, the mean free path decreases due to phonon Umklapp scattering, and the values of κ_ab and κ_c decrease rapidly, as shown in Figure 23c,d. Furthermore, the trend of κ for heat flow parallel to the ab direction is similar to that for heat flow perpendicular to the ab plane, which further supports the idea that the heat carriers inside the material are phonons. Lefrançois et al.^[154] also concluded that THE in α-RuCl₃ is primarily due to phonons. They measured the longitudinal thermal conductivity κ_xx and thermal Hall conductivity κ_xy under heat flow (J || a) in five different samples, as shown in Figure 23e,f. Although there is a large difference in the magnitude of κ_xx and κ_xy for different samples, their temperature-dependent trends are the same, with κ_xx and κ_xy both reaching a peak at the same temperature. The experimentally obtained thermal Hall angle |κ_xy/κ_xx| is comparable to the typical phonon-induced thermal Hall angle, which is of order 10^-3, suggesting that the heat carriers inside the material are phonons.

Display Full Size

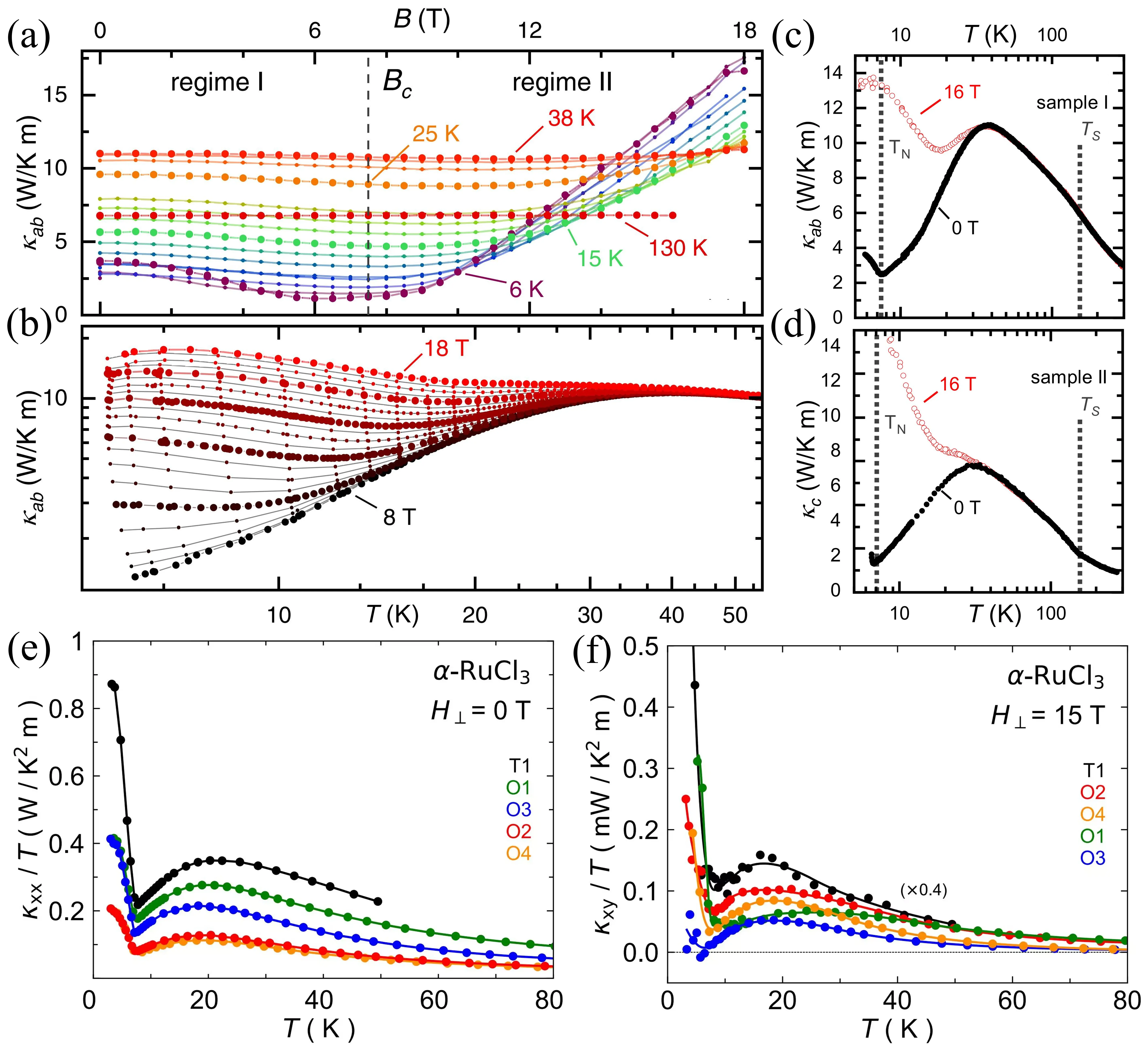

Figure 23. (a) Magnetic field dependence of the thermal Hall conductivity κ_ab at constant temperature; (b) Temperature dependence of the thermal Hall conductivity κ_ab when B > 7.5 T; (c)-(d) Relationship between thermal conductivity and temperature at B = 0 T and B = 16 T; (c) Thermal conductivity κ_ab with heat flow parallel to the ab direction of regime I; (d) Thermal conductivity κ_c with heat flow perpendicular to the ab direction of regime II. Republished with permission from^[153]; (e) Temperature dependence of the longitudinal thermal conductivity κ_xx for five different samples in zero magnetic field; (f) Temperature dependence of the thermal Hall conductivity κ_xy at H = 15 T. Republished with permission from^[154].

Czajka et al. observed the de Haas–van Alphen effect in α-RuCl₃, suggesting the possible presence of a Fermi surface within the material^[155]. Therefore, the carriers responsible for THE may involve a different fermionic excitation rather than Majorana fermions. They found that the κ_xx of α-RuCl₃ oscillates as a function of magnetic field at temperatures T < 4.5 K, and no half-integer quantized plateau was observed in THE, as shown in Figure 24. This suggests the possible presence of an alternative fermionic excitation within α-RuCl₃; however, direct experimental support remains limited. The underlying mechanism warrants further investigation.

Display Full Size

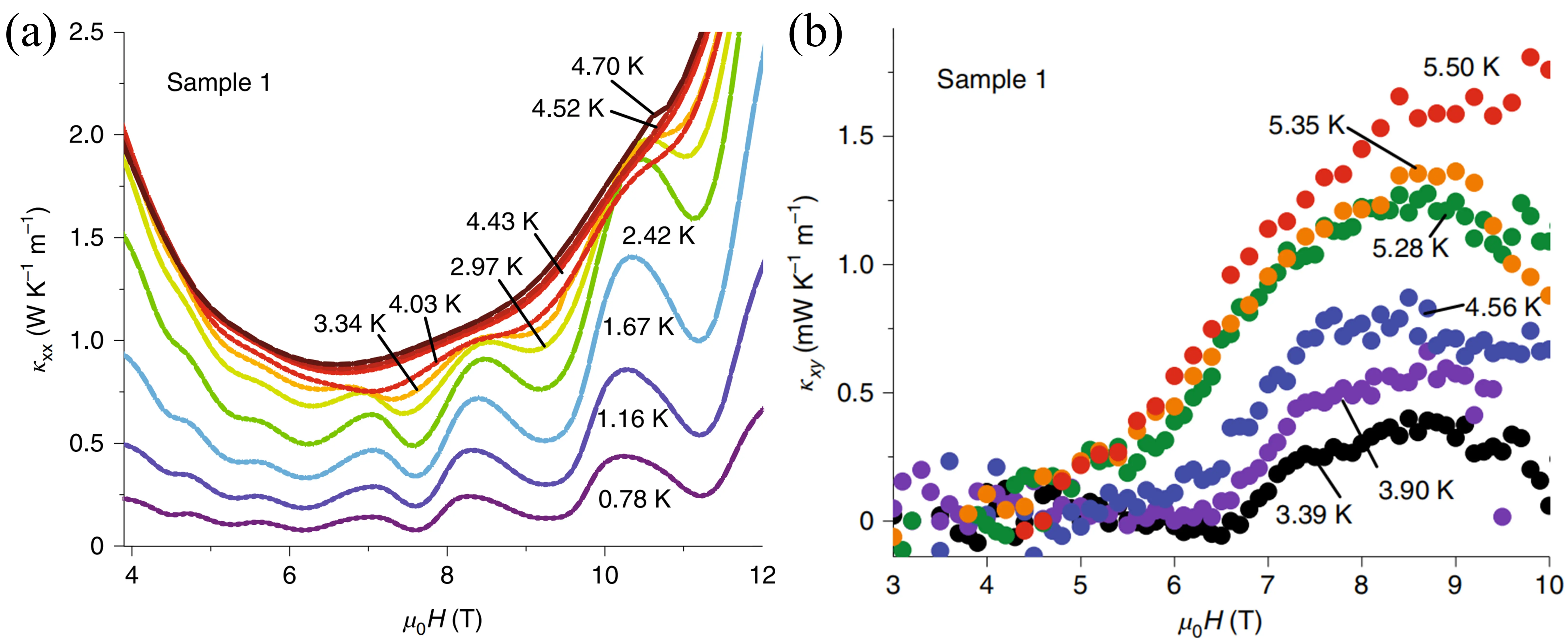

Figure 24. (a) Oscillations of κ_xx (H||a) below 4.5 K; (b) Magnetic field dependence of the thermal Hall conductivity κ_xy at different temperatures. Republished with permission from^[155].

This subsection summarizes two materials in which THE attributed to internal carriers remains controversial. Initially, researchers attributed the thermal Hall response in Tb₂Ti₂O₇ to spin excitations, and based on comparisons with prior reports, argued against a purely phononic origin. However, Hirokane et al. found that partially substituting Tb³⁺ with Y³⁺ not only did not reduce the thermal Hall conductivity κ_xy, but actually increased it. This trend is more consistent with a phonon-related contribution, contradicting the behavior expected from spin excitations. The tension between experimental observations suggests that more than one type of carrier contributes to thermal transport within the material, and the coupled transport among these multiple carriers leads to the apparently disparate experimental outcomes. A similar situation is observed in α-RuCl₃, where three interpretations have been proposed for the heat-carrying carriers: Majorana fermions, phonons, and an alternative fermionic excitation. Among these, Majorana fermions can account for the half-integer quantized plateau and the sign reversal of κ_xy; phonons can account for the similar behavior of κ_xx and κ_xy over a broad temperature range; and another fermion from the Fermi surface can explain the oscillations of κ_xx over a narrow temperature range. However, these carrier interpretations are confined to specific phenomena and cannot provide a unified explanation of all experimental observations in this material. This scenario suggests the coexistence of multiple carriers within the material, interacting with each other, where different experimental phenomena can be interpreted as arising from different excitations contributing with different weights to the thermal Hall conductivity under different experimental conditions. Table 4 summarizes the reported thermal Hall signals in these materials under different temperatures and magnetic fields.

3. Integrated Measurement Method

Except for non-magnetic insulators, most materials host multiple carriers, as shown in Table 5. Several materials, including van der Waals magnets, Tb₂Ti₂O₇, multiferroics, and α-RuCl₃, are potential platforms for studying coupled transport, but how can this be achieved? Experimental techniques, as crucial research tools, currently focus only on studies of bulk materials and are largely limited to THE and related thermal parameters. Developing integrated magneto-thermal-electrical multiparameter measurements on the same specimen would greatly help to elucidate interaction mechanisms among carriers and is essential for advancing mechanistic understanding in condensed-matter physics.

THE involves various couplings among heat carriers, and experimental characterization can deepen our understanding of the transport mechanisms underlying these couplings. Currently, researchers typically use a similar experimental configuration to measure THE. The measurement principle involves attaching a heater and a heat sink to opposite ends of the sample to establish a longitudinal heat current Q, and placing three thermometers on the sample surface to measure the longitudinal and transverse temperature gradients, from which κ_xy can be extracted. The measured specimens are bulk (macroscopic) materials, as shown in Figure 25.

Display Full Size

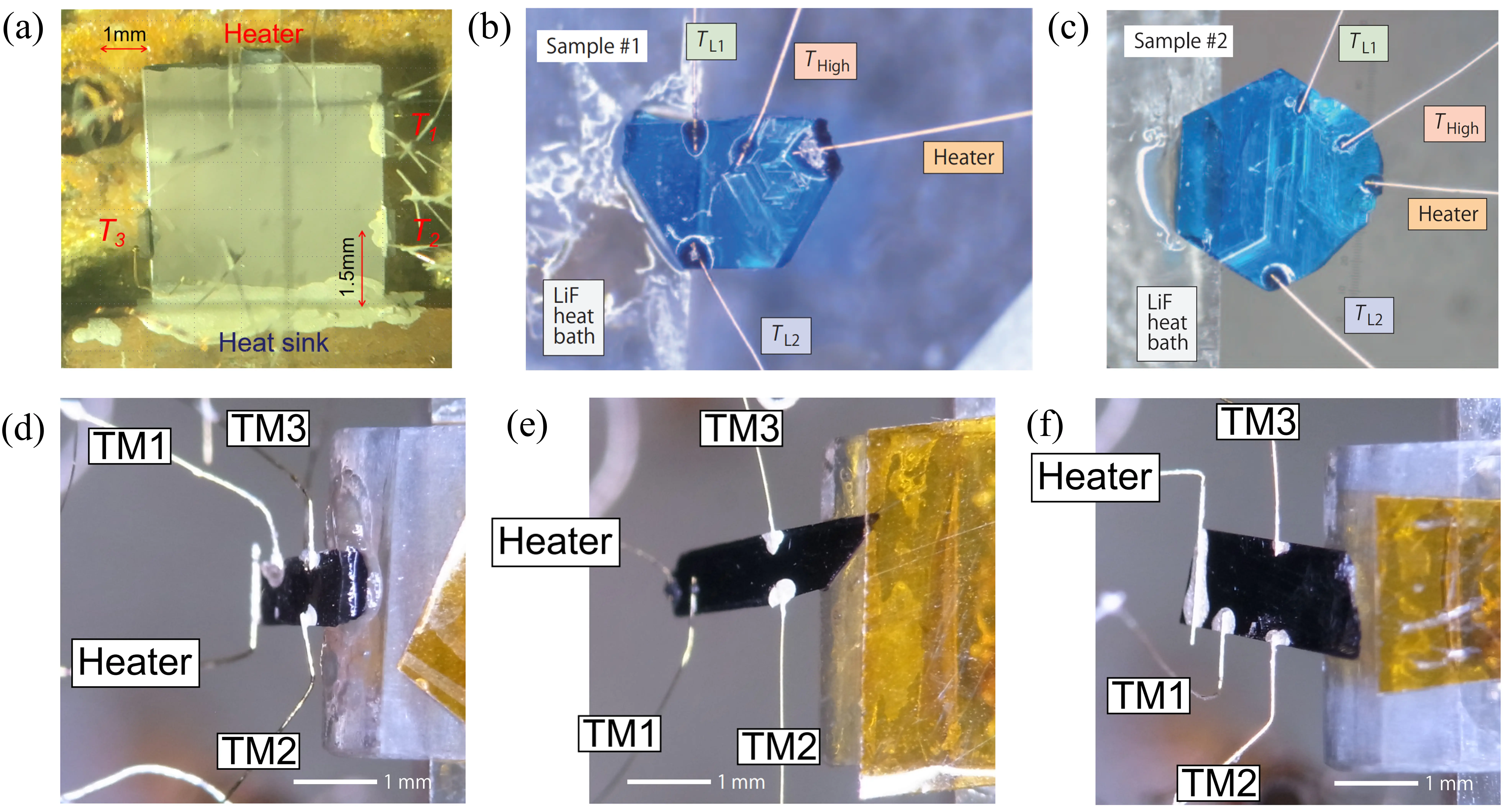

Figure 25. Photographs of the measured samples: (a) SrTiO₃. Republished with permission from^[40]; (b)-(c) Ca kapellasite. Republished with permission from^[32]; (d)-(f) α-RuCl₃. Republished with permission from^[152].

Compared with bulk materials, THE at the micro/nanoscale is of greater interest. First, the quantum effects in micro/nano materials are more pronounced, facilitating the observation of topological THE (e.g., THE driven by Berry curvature). Second, reduced dimensionality and strong correlations can cause heat carriers such as phonons and magnons in micro/nano materials to exhibit properties that are fundamentally different from those in macroscopic materials. Furthermore, low-dimensional structuring is currently the most effective method for enhancing material performance. Finally, the effective signal in micro/nano materials is large relative to the background signal, resulting in a higher signal-to-noise ratio. Studying the transport mechanisms of carriers at the micro/nanoscale could provide a theoretical foundation for developing high-performance thermoelectric, ferroelectric, and ferromagnetic materials and devices, as well as applications in spintronic chips and magnetic storage devices. However, current measurements of THE are still concentrated on bulk materials, with relatively few studies on micro/nanoscale specimens. On the one hand, because the thermal Hall signal is weak, it is difficult to measure in micro/nano materials. On the other hand, existing micro/nanoscale studies often rely on separate fabrication and characterization steps, which easily leads to erroneous results due to differences in sample structure and size, hindering rigorous investigations into coupled transport among multiple carriers. This paper proposes a magneto-thermal-electrical multiparameter integrated measurement method suitable for materials at different scales, enabling in situ, single-shot measurements of parameters such as thermal Hall conductivity, electrical conductivity, Seebeck coefficient, and Hall coefficient on the same specimen. This method provides a reliable characterization approach for studying the transport mechanisms of multiple degrees of freedom (magnetic, thermal, electrical, etc.) within materials.

Figure 26 shows the schematic of the magneto-thermal-electrical multiparameter integrated measurement method. The orange areas represent metal electrodes, the blue areas represent the sample, and the dark gray areas indicate the suspension. Electrodes 2, 4, 6, and 8 are serpentine electrodes. The entire structure is fully suspended to minimize parasitic heat leakage to the substrate. Serpentine electrodes are placed at both ends of the device, serving as both heaters and temperature sensors. Serpentine electrode 2 is used to heat the sample, and the thermal conductivity (κ) of the material is extracted from the temperature difference between the two ends of the sample. By swapping the heater and heat-sink ends, the thermal conductivity in different directions can be measured, allowing for the calculation of the thermal rectification coefficient (η). Additionally, the thermal signal is converted into an electrical signal, and the electrical conductivity (σ) and electrical rectification coefficient (δ) of the material can be obtained using electrodes 1, 3, 5, and 7. If the sample under test is a thermoelectric material, the Seebeck coefficient (S) can be measured via electrodes 1 and 7 or electrodes 2 and 6, and the thermoelectric figure of merit (ZT) can be calculated. These parameters are key metrics for assessing the thermoelectric performance of the material. For Hall measurements, a magnetic field is applied perpendicular to the sample plane and to the heat current/electric current direction. If heat flow is used, serpentine electrodes 4 and 8 measure the transverse temperature difference to determine the thermal Hall conductivity (κ_xy). By applying an electric current through electrodes 1 and 7 and measuring the Hall voltage across electrodes 1 and 3, the Hall coefficient (R_H) can be derived, which is then used to calculate the carrier concentration (n) and mobility (μ) within the sample. This method allows for the simultaneous measurement of ten physical parameters on the same sample, and by varying factors such as the material system, sample scale, magnetic field strength, and electric-field (temperature-gradient) magnitude, coupled-transport mechanisms among various carriers can be explored.

Display Full Size

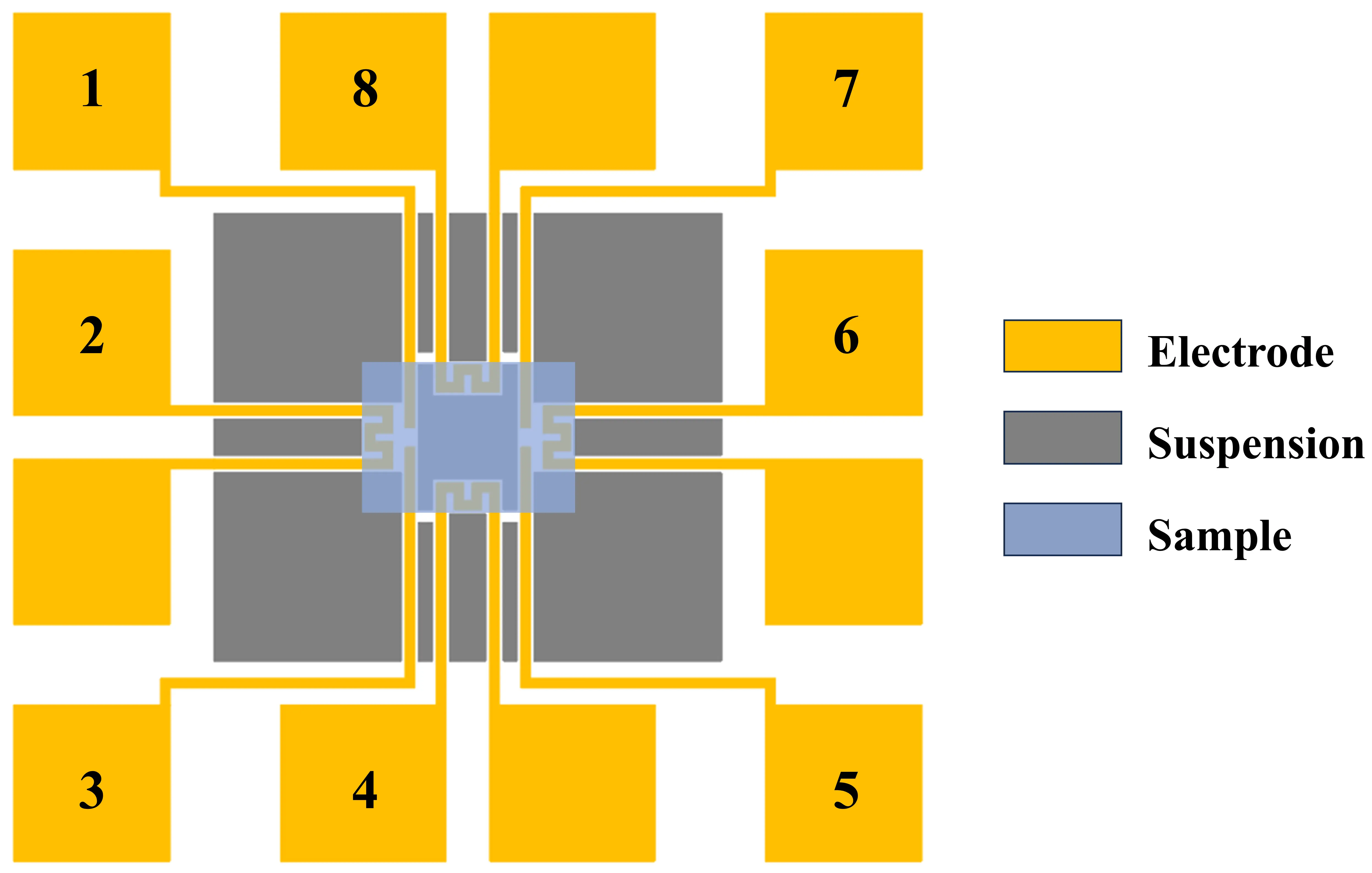

Figure 26. Schematic diagram of the magneto-thermal-electrical multiparameter integrated measurement method.

In non-magnetic insulators, phonons are typically the dominant heat carriers, making them ideal platforms for studying phonon transport. Representative non-magnetic insulators include SrTiO₃, KTaO₃, and black phosphorus. In contrast, magnetic insulators include ferromagnets and antiferromagnets, which host two primary heat carriers: magnons and phonons. However, in most magnetic insulators, researchers typically focus on a single dominant carrier. For instance, the phonon Hall effect has been studied in materials such as Tb₃Ga₅O₁₂, Nd₂CuO₄, Sr₂CuO₂Cl₂, Cu₃TeO₆, and Ba₃CuSb₂O₉, while the magnon Hall effect has been observed in materials like Lu₂V₂O₇, BiMnO₃, and Cu(1,3-bdc). In contrast, in two-dimensional van der Waals magnets, magnons and phonons are strongly coupled, producing a significant THE, making these materials ideal for probing magnon–phonon coupling. Similarly, other materials also host multiple types of carriers, such as electrons/phonons in metals, photons in specific systems, excitons, electrons, and phonons in monolayer MoS₂, electrons/phonons in non-magnetic semiconductors, and electrons/phonons/magnons in magnetic semiconductors, among others. Thus, varying the material system enables systematic experimental investigations into the transport mechanisms of single or multiple carriers.

Furthermore, existing measurements of THE are concentrated on bulk materials, with sample sizes typically on the millimeter scale. For example, SrTiO₃ has dimensions of 5×5×0.5 mm³, Ca kapellasite is 1 × 1 × 0.1 mm³, and α-RuCl₃ measures 2.5 × 1.0 × 0.03 mm³, among related systems. However, as the characteristic length scale decreases, both the material properties and the transport mechanisms of the relevant excitations can change. The method proposed in this paper allows for the fabrication of measurement structures suitable for samples of different scales by scaling the photomask layout, enabling THE measurements across multiple dimensions and characteristic length scales, spanning from the nanoscale to the bulk scale.

In summary, this method enables direct extraction of ten physical parameters on a single specimen. Furthermore, by varying the material system and sample dimensions, it achieves cross-scale THE measurements and simultaneously obtains multiple magneto-thermal-electrical parameters in situ, providing a robust experimental platform for investigating the coupled transport among multiple excitations. Additionally, each parameter can be extracted independently, with minimal cross-talk, improving measurement accuracy and offering a reliable characterization tool for accurately measuring material properties and elucidating microscopic mechanisms in condensed-matter physics.

4. Conclusions and Outlooks

This paper reviews recent research progress on THE, with an emphasis on experimental measurements and theoretical studies. Organized by the types of heat carriers responsible for THE, this paper discusses the microscopic mechanisms underlying the transverse temperature gradient induced across the sample.

First, the electronic THE is widely observed in metallic materials, affecting their thermal transport. Similarly, the photon THE has been observed in specific systems, offering a route to nanoscale thermal management. Next, PHE has been observed in Tb₃Ga₅O₁₂, for which two mechanisms have been proposed: Raman spin-lattice interaction and phonon resonance skew scattering induced by Tb³⁺ ions. For the nonmagnetic insulator SrTiO₃, where phonons dominate heat transport, the thermal Hall conductivity originates from phonon scattering off domain walls, demonstrating that phonons can generate an enhanced transverse thermal response via skew scattering. In cuprates, the dominant heat carriers have been identified as phonons, and it is predicted that phonon chirality may arise from the coupling between phonons and spins, although the nature of the pseudogap phase in cuprates remains a mystery. Additionally, researchers suggest that phonon chirality may be more common than previously thought, representing a potentially ubiquitous feature in solid materials. Magnons, as collective low-energy excitations in magnets, generate THE through two mechanisms: scalar (spin) chirality and the nonzero DM interaction. A nonzero Berry curvature in momentum space caused by DM interaction provides a well-accepted explanation for the magnon Hall effect. However, in the SL temperature regime, the dominant magnetic excitations evolve from magnons to fractionalized spinons. Excitons, as composite particles, exhibit a thermal Hall angle much larger than that of free electrons, and the transverse signal arises from the intrinsic Berry curvature.

Although the identities of the dominant heat carriers in most materials have been clearly identified, a subset of materials remains controversial. Initially, researchers proposed that the thermal Hall response of Tb₂Ti₂O₇ originated from spin excitations, but when the magnetic-moment dilution was subsequently employed, the thermal Hall conductivity showed signatures consistent with phonon transport, which was in tension with the assumption of magnetic excitation. Nevertheless, this work does not fully rule out the presence of additional magnetic excitations in Tb₂Ti₂O₇, warranting further investigation. Additionally, α-RuCl₃ exhibits a large transverse temperature gradient under an applied magnetic field, but there are three proposed interpretations for the relevant heat-carrying excitations: Majorana fermions, phonons, and another type of fermion. Collectively, these phenomena demonstrate that THE in the material is governed by multiple coexisting excitations; a single-carrier picture cannot capture all observed behaviors of the material. Furthermore, apparently discrepant experimental observations may originate from different dominant excitations under different conditions. Two-dimensional van der Waals magnets (ferromagnets and antiferromagnets) combine magnons and phonons, making them promising platforms for studying their coupling. To enable more in-depth research on carrier transport mechanisms, this paper proposes an integrated magneto-thermal-electrical multiparameter measurement method applicable to materials of different scales. By varying approaches such as the material system, sample dimensions, magnetic field strength, and electric-field (temperature-gradient) magnitude, this method enables systematic studies of the coupled transport mechanisms of multiple excitations within materials.

Currently, research on THE has made substantial progress. In particular, with the continuous advancement of experimental techniques and gradual refinement of theoretical models, our understanding of THE has continued to deepen. However, whether in experimental measurements or theoretical studies, studies often focus on specific materials, lacking a unified mechanistic picture and broadly accepted evaluation criteria. In this work, this paper identifies key challenges for THE and future research directions, to promote further progress in THE research.

(1) The experimental samples for THE span a wide range of materials, such as topological materials/systems, strongly correlated electron systems, magnetic materials, and others. The carrier transport mechanisms within these materials are intricate, featuring strong interactions and couplings among excitations. Furthermore, different materials may exhibit unique thermal transport mechanisms, making cross-material comparisons and generalizations across materials particularly challenging^[47,156]. Leveraging transport phenomena of dominant carriers in different materials and establishing robust experimental protocols will help establish a unified theoretical framework.

(2) Theoretical models used to explain THE are often based on simplified assumptions and lack a unified framework applicable across materials. The semiclassical Boltzmann model is simple and intuitive but neglects topological quantum effects and strong electronic correlations. The Kubo formula and Berry curvature model are suitable for complex quantum phases, but they are computationally demanding and often neglect scattering and defect effects in real materials. The phonon-magnon models can handle specific types of materials but typically lack universality and quantitative predictive power^[157]. Consequently, further refinement and validation of theoretical models remain a direction urgently requiring breakthroughs.

(3) The THE signal is weak and easily influenced by environmental noise and electromagnetic interference^[158]. Measurements require well-controlled temperature gradients, and most significant thermal Hall signals emerge exclusively under ultra-low temperatures or strong magnetic fields. Furthermore, with multiple heat carriers present within materials, effectively separating and distinguishing their contributions to κ_xy and κ_xx remains a technical challenge^[44]. Additionally, as the characteristic dimensions decrease, fabrication, handling, and transfer may also affect the measurement results, posing additional challenges for experimental implementations.

(4) Although many theoretical models have been proposed to explain THE, reconciling experiments with theory remains unresolved. The generation of THE involves the interplay of multiple physical factors, including temperature gradients, magnetic fields, and carrier interactions. Moreover, these factors may be affected by other non-ideal conditions in experiments, such as material inhomogeneity, impurities, and variations in field magnitude and orientation. These factors all influence the experimental results but are difficult to capture quantitatively in theoretical models. Finally, the lack of standardized protocols for THE experiments limits cross-comparability, with outcomes sensitive to multiple factors. Therefore, strengthening the linkage between experimental results and theoretical models remains a key challenge.

(5) This paper proposes a magneto-thermal-electrical multiparameter integrated measurement method suitable for materials of various scales. By adjusting the material system, sample scale, and external field strength, this method enables THE measurements across multiple dimensions and characteristic length scales. This approach allows for the in situ measurement of multiple parameters, such as thermal Hall conductivity (κ_xy) and Hall coefficient (R_H), on the same sample, avoiding structural differences that may arise across separately fabricated specimens. Each parameter can be extracted independently, minimizing cross-talk and providing a reliable platform to probe carrier-transport mechanisms within materials.

(6) Given the coexistence of multiple heat carriers in most materials, decoupling and quantifying their respective contributions to THE remains a core challenge for future research. To overcome this challenge, three feasible strategies are proposed: First, based on the Wiedemann-Franz law, the simultaneous measurement of electrical and thermal Hall conductivities at low temperatures allows for the precise subtraction of the electronic contribution to extract the signals of neutral carriers. Second, by exploiting their distinct responses to external magnetic fields and temperatures, the effective separation of phonons and magnons can be achieved by utilizing the low-field saturation and high-field suppression characteristics of magnons. Third, by introducing non-magnetic impurity doping and relying on the sensitivity of phonons to lattice defects, the dominant contribution of phonons can be confirmed and decoupled by comparing the evolution of the longitudinal and transverse thermal conductivities before and after doping.

As an emerging phenomenon, THE is not only a powerful tool for probing neutral excitations in materials but also a powerful probe of topological properties and quantum phases^[159]. For example, in high-temperature superconducting cuprates, researchers have observed significant thermal Hall signals in the strange metal and pseudogap phases proximate to the superconducting dome. Additionally, in materials such as quantum spin liquids and strongly correlated electron systems, thermal Hall measurements are used to discriminate among non-trivial quantum phases, informing condensed-matter physics studies and guiding the development of quantum devices. As a characterization method, THE enables nondestructive access to Berry curvature, band topology, and topological order, providing design guidance for microelectronic, optoelectronic, and spintronic devices. Looking ahead, THE will be widely applied to quantum computing components and spintronic devices, accelerating the development of functional devices.
